單相鼓型分接開關（4000A）
無勵磁鼓(管)型分接開關
De-energized drum-form (tube-form) tap-changer
無勵磁管型及鼓形分接開關(WDG系列、WDG+WLG系列、WSG系列)額定電壓110kV(設備最高電壓126kV)及以下，額定電流4000A及以下，有三相聯動操作、1+2相操作、單相操作，其方式分箱蓋箱底、箱壁側面直接或聯動操作。
De-energized tube-form and drum-form tap-changer(WDG,WDG+WLG,WSG series), the specification of the product is with rated voltage of 110kV(the highest voltage for equipment of 126kV)and below, rated current 4000A and below with three-phase parallel operation,1+2 phase or single phase operation. The ways of operation are directly or parallly operated on the cover,at the bottom or side of transformer.

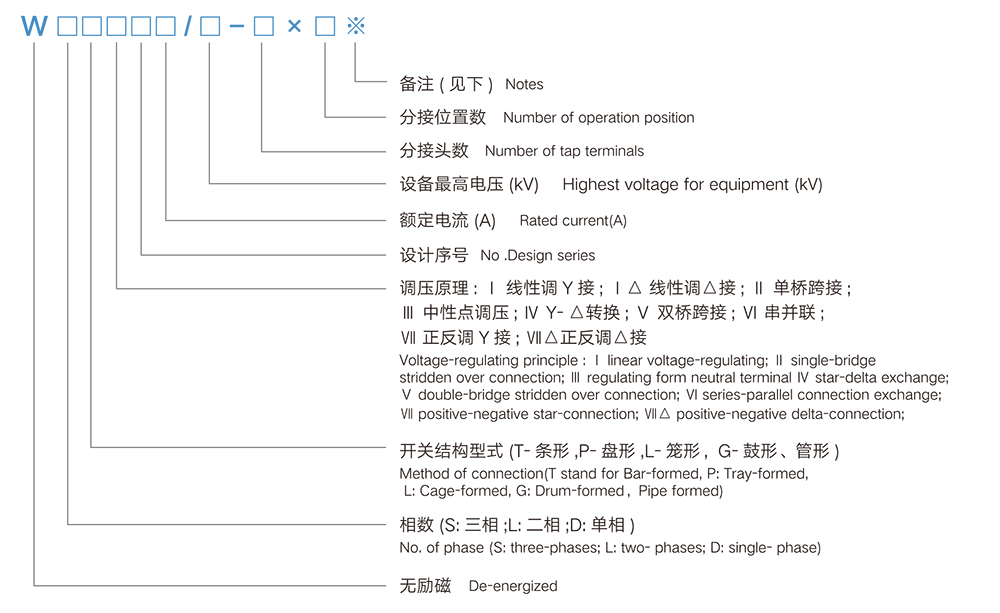

無勵磁分接開關產品型號說明
De-energized tap-changer introduction of product model
※①TH:濕熱帶; TA:干熱帶;
②QMF:全密封(適用于盤形、條形開關) ;
③W:臥式，L:立式;
④Q:鐘罩式安裝;
⑤XH:帶遠方信號顯示接點
⑥Y:中性點引出;
⑦X:帶電外限小( 適用于大籠形開關)
⑧Z:支撐座采用金屬材料(適用于條形開關)
⑨F:反向( 適用于條形開關)
⑩S:雙密封(適用于盤形、條形開關)
1.由于產品型號規格較多，在選型時請準確書寫型號，當型號還不能表達您的需求時，請您提出附加要求;
2.請在選型時注意，以上未完善參數或特殊參數以樣本當頁產品中為準;
①TH: Humidity tropical area TA: Exothermic area
②QMF: Airproof (used in linear switch and rotary switch )
③w: Horizontal L: Vertical
④Q: Bell cover installation
⑤XH: Display interface with remote signal
⑥Y: Draw forth for neutral point
⑦X: Electricity within certain limits(designed for large cage-formed )
⑧Z: Metal support (designed for bar-formed)
⑨F: Reverse(designed for bar-formed)
⑩S: Double airproof (designed for tray-formed and bar-formed )
1.Because we have manufactured many varieties of circuit tap-changers, customers are required to down the correct model of the tap-changer If the informnation about the tap-changer you desire in the catalogue is isuficient, Please attach your additional requirements on your order.
2.Customers should be aware while the brief introductions of the whole series of products are not explicit enough, We strongly recommend you to cheek the specifications on the page of the model you desire in the catalogue.
無勵磁鼓(管)形(G)分接開關
De-energized pipe-type tap-changer
產品適用范圍及特點
一種新三相管型開關，由開關本體和操作轉動機構組成，在變壓器無勵磁狀態下，通過對其進行分接位置轉換，以改變變壓器變比，達到穩定的電壓輸出。單相管型開關和“1+2”相管型開關適用立式安裝，三相管型開關適用立式或臥式安裝。
該系列產品適用于頻率為50Hz或60Hz大中型油浸式電力變壓器以及特種變壓器，全密封變壓器；適用于平頂式油箱和鐘罩式油箱，其設備最高電壓為252kV及以下，額定適應電流4000A及以下。
管形開關的特點頗豐，已取得多項國家專利加以保護
(1)管形外觀，簡潔明快；無可靠性差結構，無不堅固構件，可靠性一目了然；
(2)轉動力矩輕盈，到位手感清晰。設計特色：二者互為制約，相輔相成，調節適宜。操作換檔輕捷自如，準確無誤，比同類產品明顯優越；
(3)外部殼體取消繁雜的導體連接及外罩，制成封閉式具有抗高電壓屏障的外絕緣，安裝開關的夾空即便狹窄到使其貼近變壓器器身，也不會(huì )放電擊穿；
(4)還研制出管型開關內部結構一次性全部抽出的絕竅，極大地方便總裝和維護。
The usage scope and technical features of tube-type tap-changer
This is an new three- phase tube-type tap-changer，it is combined by the body of tap-changer and an operating turning framework, when the transformer is under non-energized state , we can turn over the tap position to change transformer ratio and stabilize output voltage，The single phase and “ 1+2” phase tube-type tap-changer are suitable for installation on vertical direction，but the three-phase tube-type product is suitable for vertical or horizontal installation .
These series of products are specially designed for large or medium oil-immersed power transformer, full hermetically transformer or transformers for specially used , they are frequency normally on 50Hz or 60Hz, and suitable for flat type or bell-type oil tank , its Highest voltage for equipment is up to 252kV and below ,rated current up to 4000A and below.
This product has many technical features and owned a certain of national patent right protection .
(1) Simple and lively appearance ,reliable structure equipped with solid construct pieces .
(2) Light moment , turn over tap position clearly . The product has technical design features as following : body pieces are restricted each other and functioned each other ,you can change the tap position freely and exactly ,compared with the same type of products , it has obvious superiority features.
(3) No conductors and switch cover being equipped on the outer body of product . This is a full hermetially outer insulation screen which can withstand high voltage impulse .so no puncture discharge will rise between the narrow gaps , even if the air gap of the tap-changer is very near the active body of the transformer.
(4) The inner structure of the tube- type tap-changer can be drawn out as a whole part , this helps to installation and maintenance.

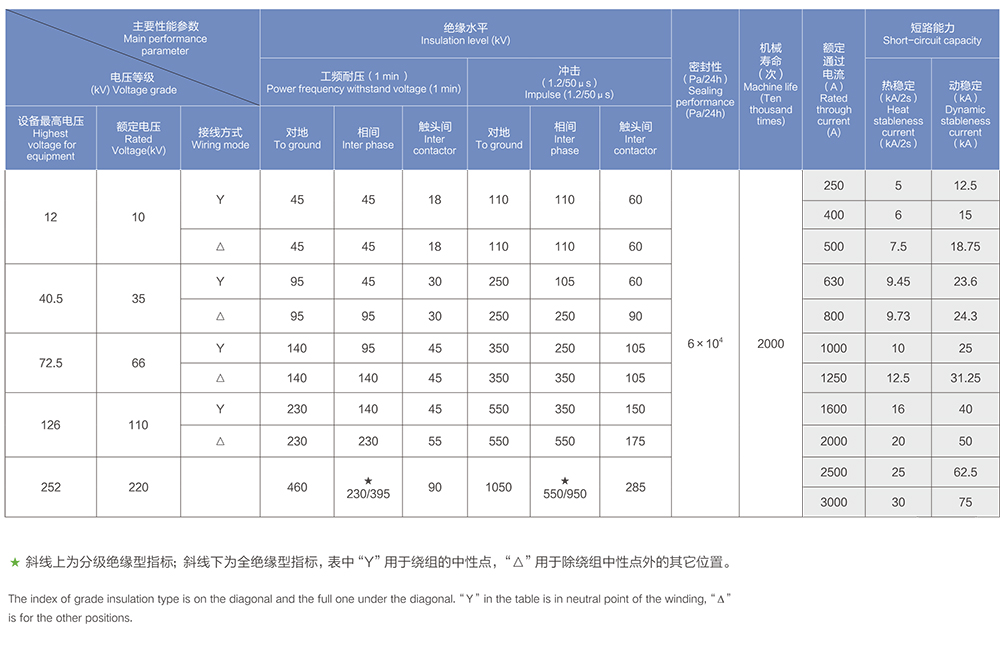

管型及其籠型開關主要技術性能指標
Pipe-Type and their cage-form tap-changer technical performance parameter
無勵磁鼓(管)形分接開關配置及選型
The equipments and type select of de-energized drum (tube) tap-changer
產品基本配置 Equipments of the product

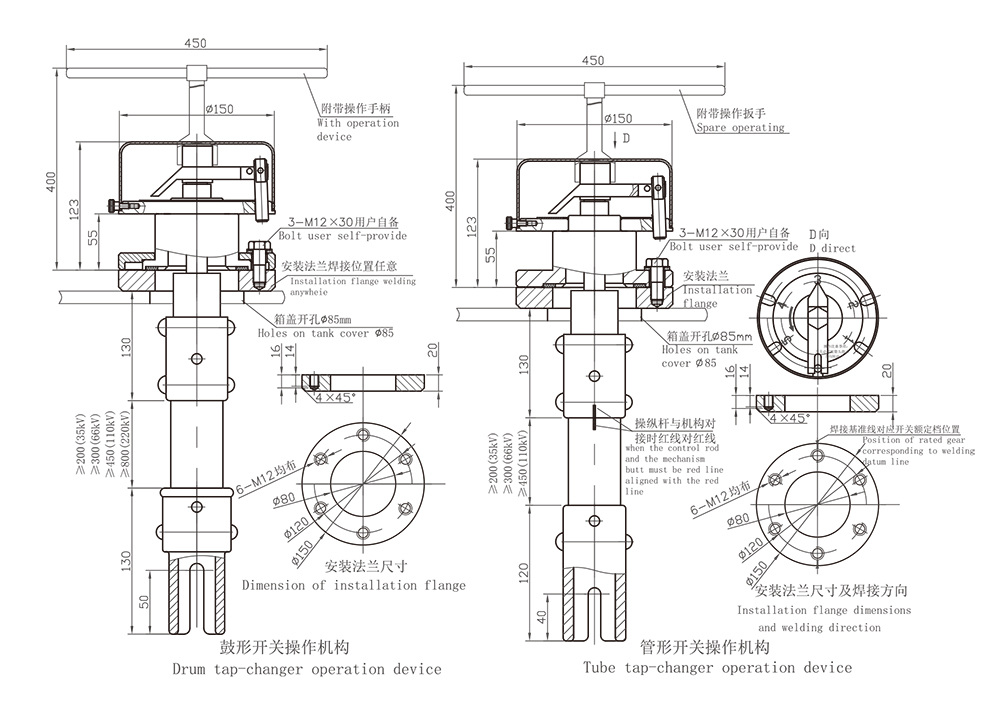

1.管形開關(徑向出線)提供操動機構、絕緣操縱桿、焊接法蘭盤及密封圈，鼓形開關(軸向出線)不提供焊接法蘭盤;
2.管形開關配絕緣操縱桿長800mm,鼓形開關配絕緣操縱桿長1200mm，若需加長用戶訂貨時提出;
3.鼓(管)形開關分接引線長度為700mm,特殊要求用戶提出;
4.配用引線截面: 250A →70mm2; 400A→120mm2; 500A→1 50mm2 ; 630A→1 85mm2 ; 800A →240mm2 ;
1000A及以上為雙引線，特殊要求用戶提出;
5.引線表面絕緣處理方式:管(鼓)形開關引線絕緣包長500mm, 10 ~ 35kV單邊包厚4mm，66 ~ 110kV單邊包厚6mm，220kV單邊包厚10mm。
1.Pipe-form switch (radial line) is equipped with operation mechanism, insulation controlling pole, welding flange and seal wash.Drum switch (axis line) is equipped without flange.
2.Pipe-form switch is equipped with an insulation controlling pole of 800mm, and drum switch with a 1200mm one. If you need a longer one, please indicate in the order.
3.The length of drum tap-changer (pipe-form tap-changer) lead is 700mm, user can specify with exceptive requirements.
4.The applicable lead section: 250A - > 70mm* ; 400A →120mm' ; 500A →150mm*; 630A→185mm'; 800A→240mm' ;1000A and up, use twin lead user can specify with exceptive requirements.
5.Insulation methods of lead section: insulation cover of drum switch lead is 500mm, one layer-thickness of the cover for 10 ~ 35kV transformer lead is 4mm, and 66 ~ 110kV 6mm，220kV 10mm. Drum switch is not covered.

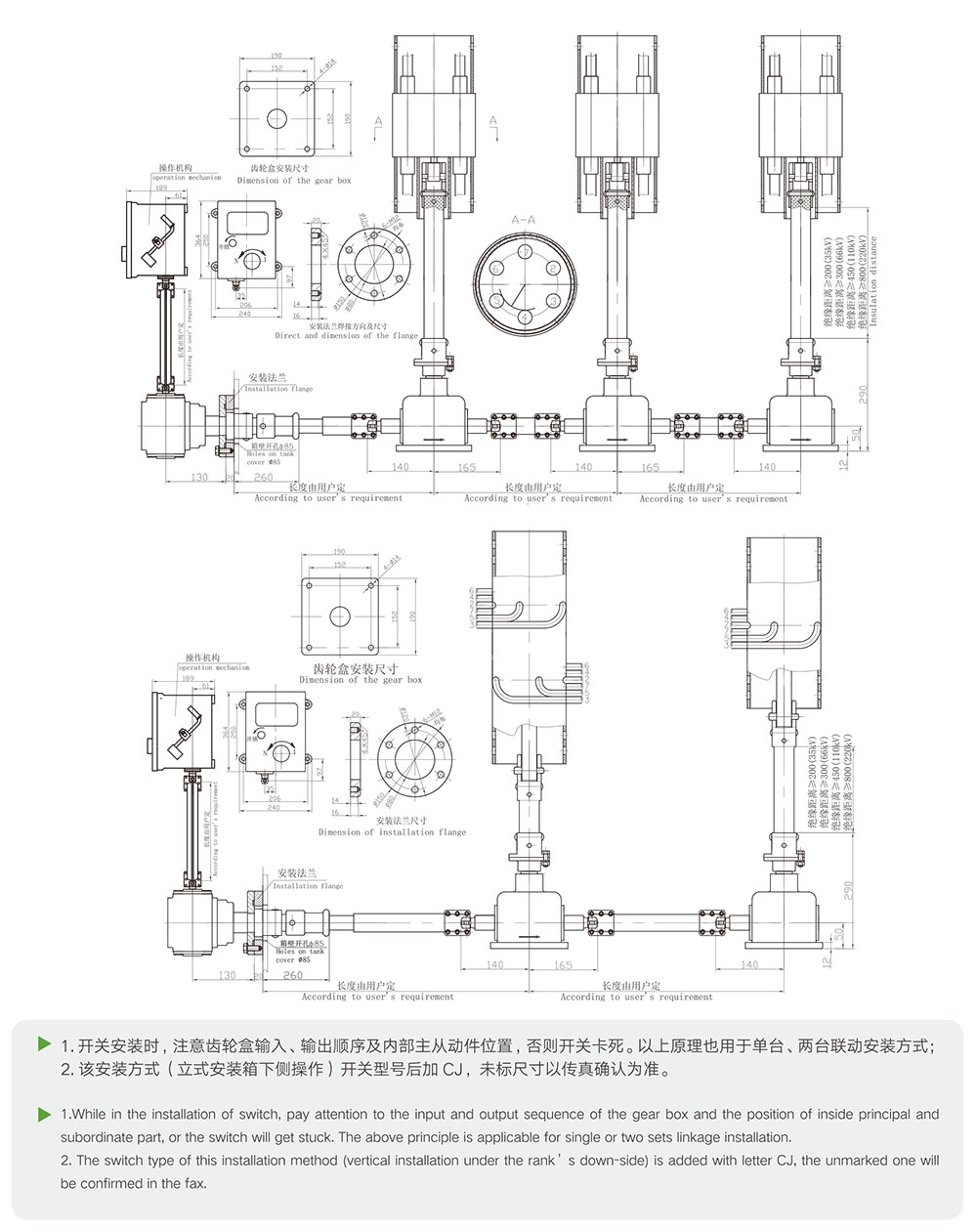

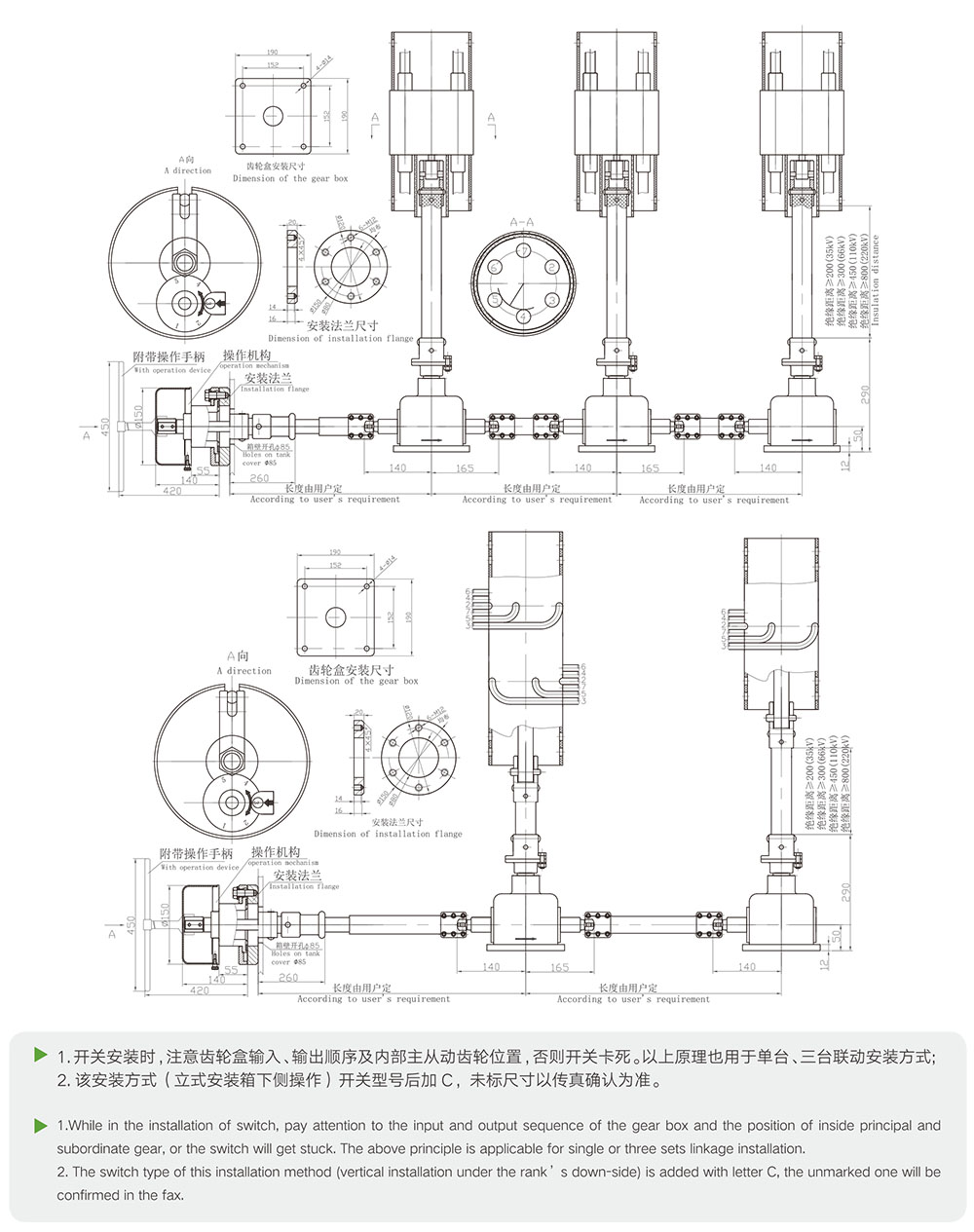

鼓(管)形開關箱下側操作及聯動結構示意圖1
Tank' s down-side operation and linkage configuration diagram
鼓(管)形開關箱下側操作及聯動結構示意圖2
Tank' S down-side operation and linkage configuration diagram

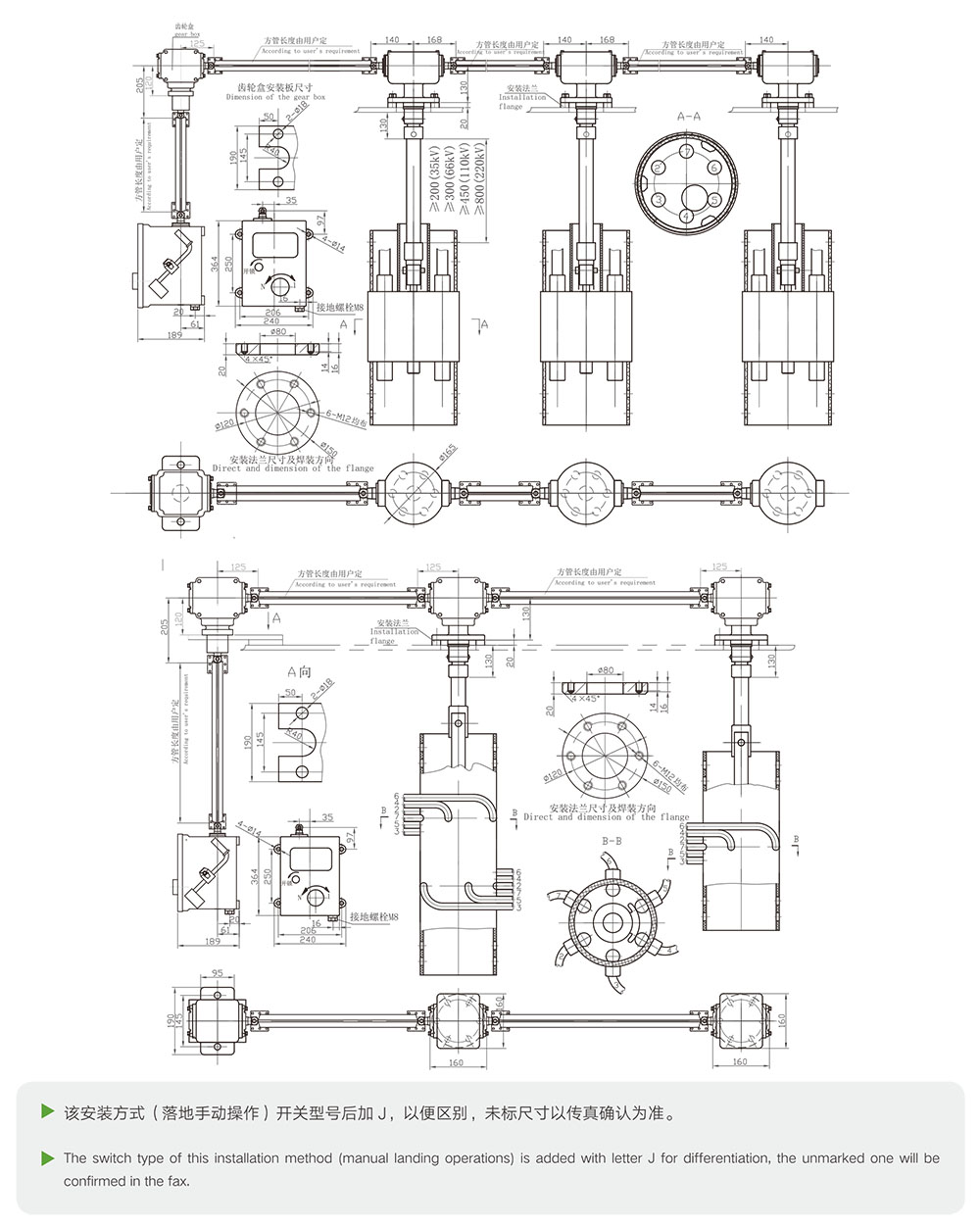

落地手動操作結構示意圖
The manual landing operation structure diagram

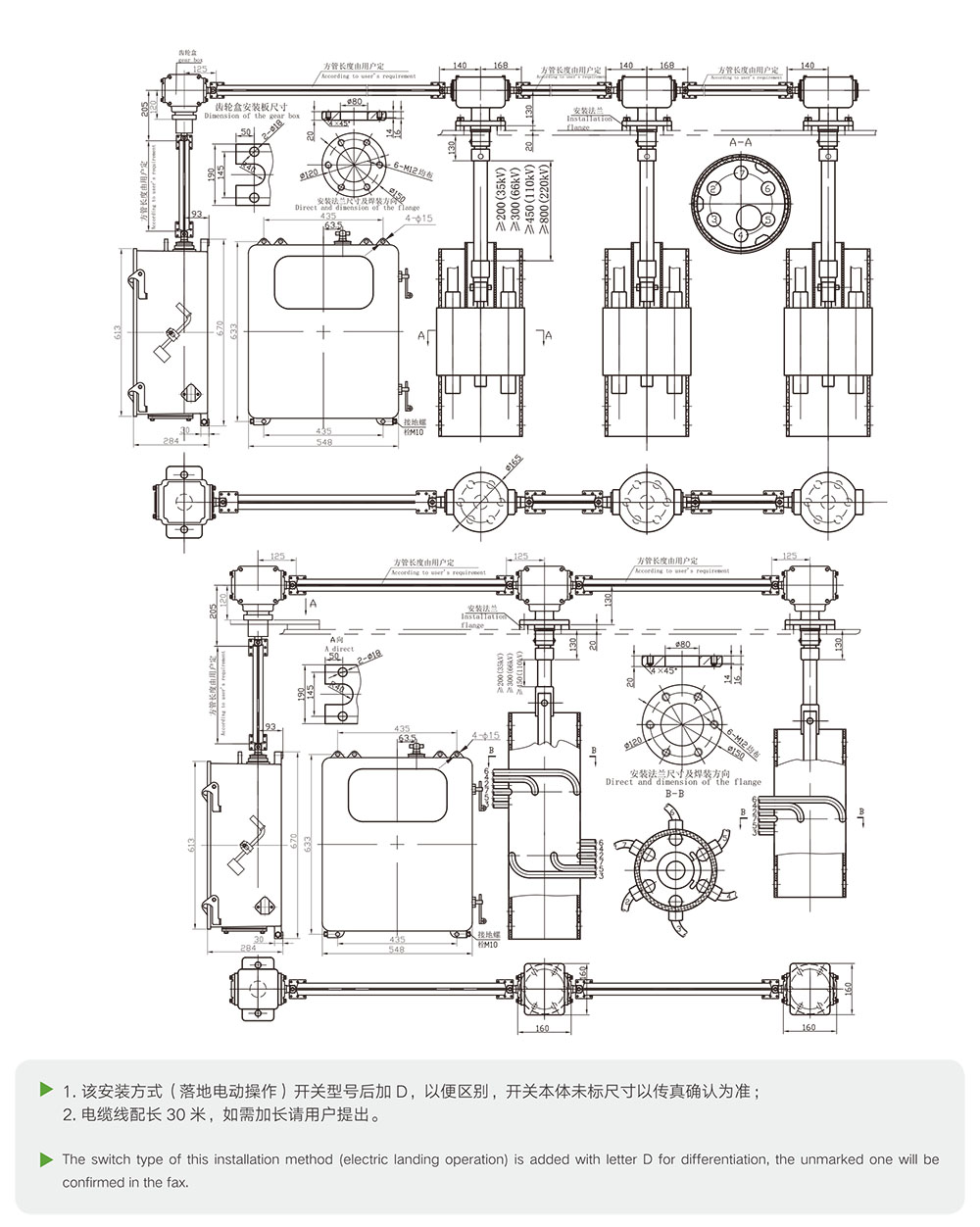

落地電動操作結構示意圖
The electric landing operation structure diagram
WDG II 單相鼓形無勵磁分接開關
WDG II series de-energized drum-formed tap-changer
本開關由開關本體和操作機構組成，采用壓縮彈簧、環形動觸頭，具有結構合理，操作簡單，能自動定位，手感強，接觸好等優點。適用于頻率50Hz、60Hz，設備最高電壓40.5kV、126kV、252 kV，額定電流200A~2500A的油浸式變壓器，開關部份固定在器身或下部油箱箱沿.上，操作轉動機構固定在箱蓋上，在無勵磁狀態下分接調換。
This type of changer is comprised by tap-changer body and operating mechanism, Being adopted by crank principle ，compress spring and ring-type motive contact, They have the merits of reasonable in structure ，operating simply ，location automation，good in handing and contact reliable etc， It is suitable for oil-immersed transformer with frequency of 50 or 60Hz，highest voltage for equipment 40.5kV or 126kV and 252kV，rated current from 200 A to 2500A, The body of tap-changer is fixed on the tanking transformer or on the body of lower part of oil tank, The operating mechanism is located on the tank cover, they must be working under non-energized condition.
鼓形開關特點：
1、開關本體部分：
a、轉動部位采用新結構，具有轉動靈活，操作力矩小，使開關在干燥處理后(高溫狀態)，也能正常操作;
b、增設了自動定位裝置，動觸頭過“死點”后，能自動定位，消除了動觸頭偏位現象，具有操作手感強的特點;
C、增設了導向筒，使開關在二次裝配時，操縱桿的插入準確，方便。
2、開關的操縱機構部分：
a、采用新的法蘭壓緊固定方式，機構的法蘭可隨開關本體檔位角度任意轉動，而不需調整檔位指示角度;
b、只要把操縱桿按實際的長度進行有效的對接即可，使裝配更為簡化;
c、操作未到位時，手柄無法定位，使罩子無法戴.上，具有防止誤操作功能。
New features of drum-formed tap-changer
1、The part of tap-changer body
a、The turning part of the tap-changer is made of new structure ，turning flexibly and small operating moment.It can work normally after the tap-changer is dried with high temperature.
b、The automatic orientation device is made in the switch，after the motive contact is passed through“ dead point', it can orientate by itself and eliminate the position excursion phenomena，This operation makes the tap-changer have strong handle feeling.
C、The direction guiding barrel is added in the switch，when the switch is assembled once again, the operating pole can be inset to the position exactly and conveniently.
2、The part of operating mechanism
a、The flange is fixed with new installation method, the flange on the operating mechanism can turn freely along with the turning angel of the tap-changer body. Adjustment the steps of tap-changer is not required.
b、Only connect rightly to the operating pole using its actual length, it makes assembly more easily.
C、When the tap-changer is turned to the end part of position, the handle pole can not be gone forward and the cover can' t be put on, this will prevent the tap-changer from any fault operation.

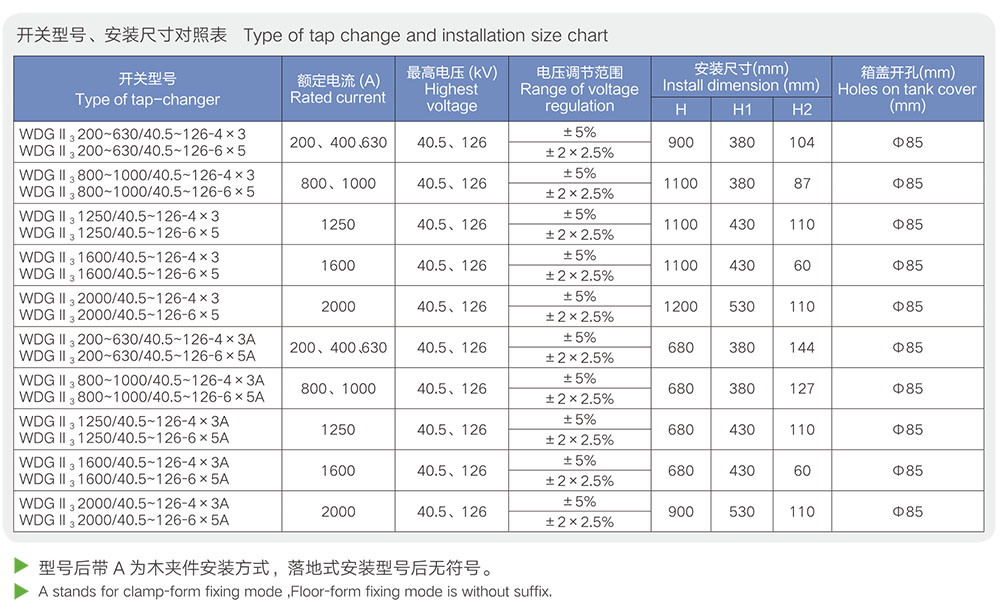

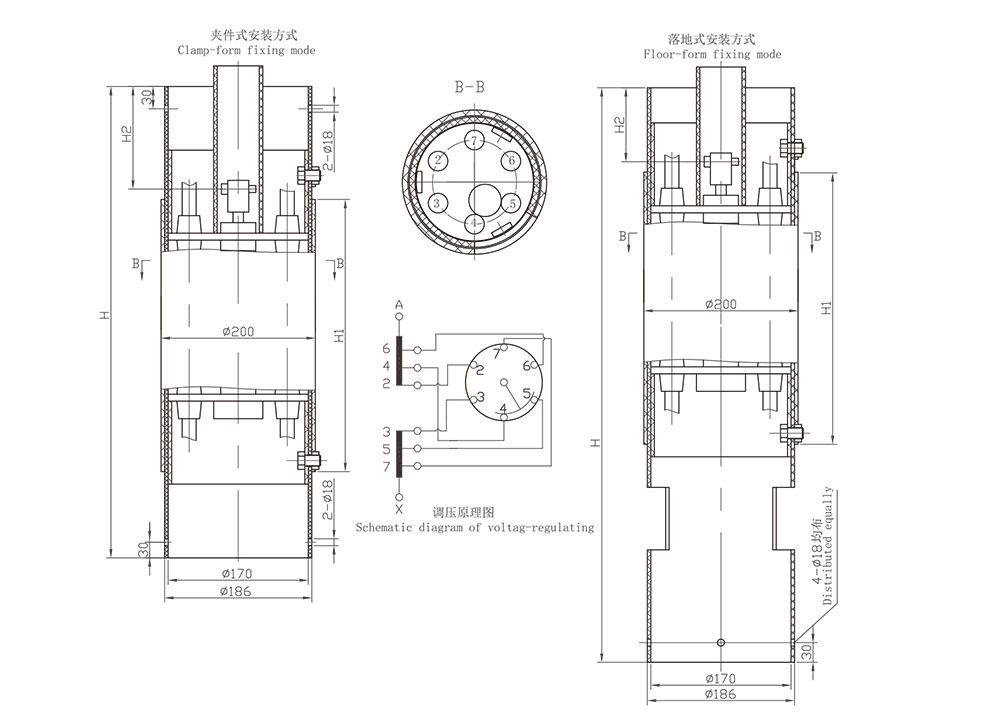

WDG ll? ( 126kV )單相鼓形分接開關( 250-2000A )
WDG II? series ( 126kV ) de-energized drum-formed tap-changer

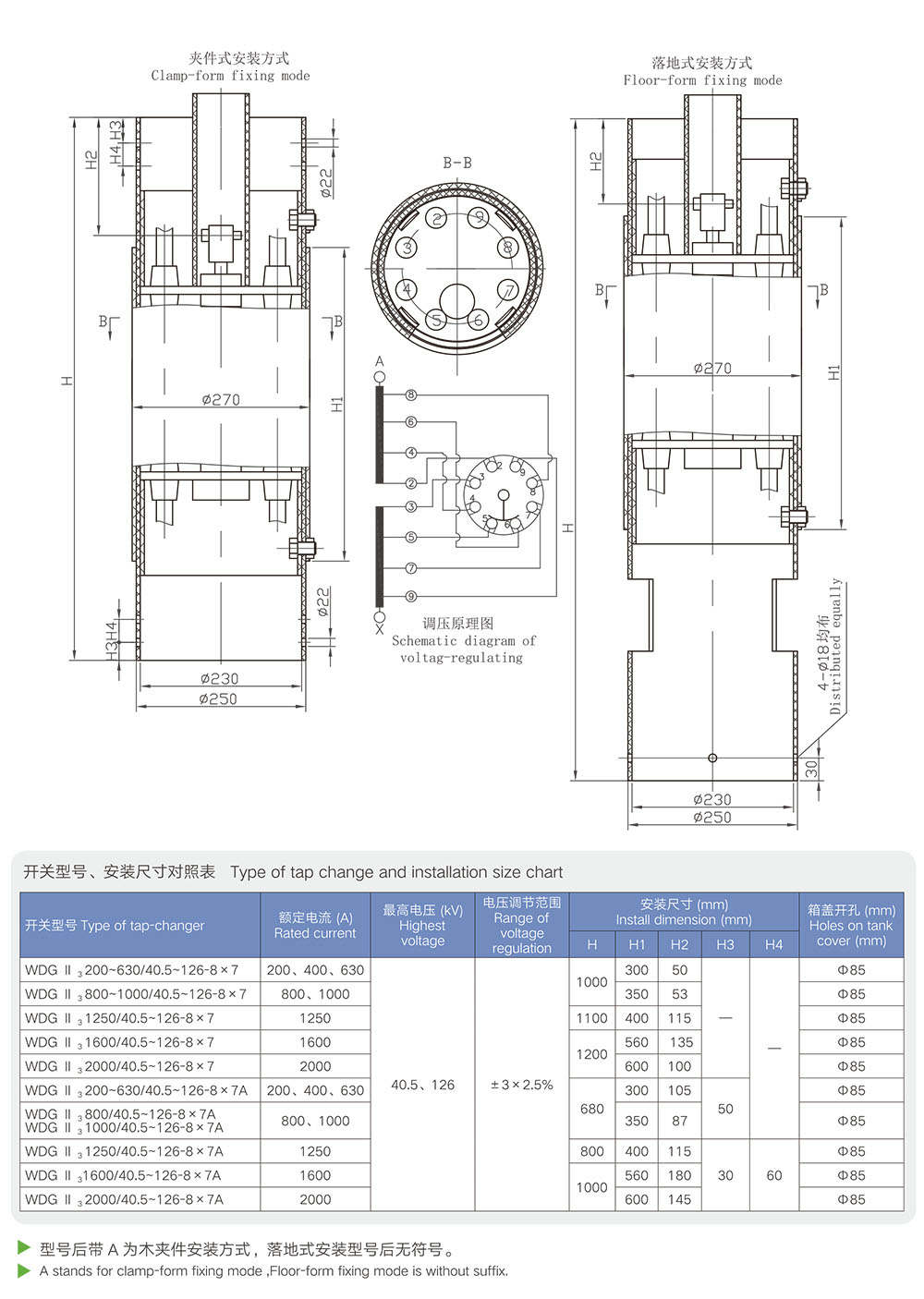

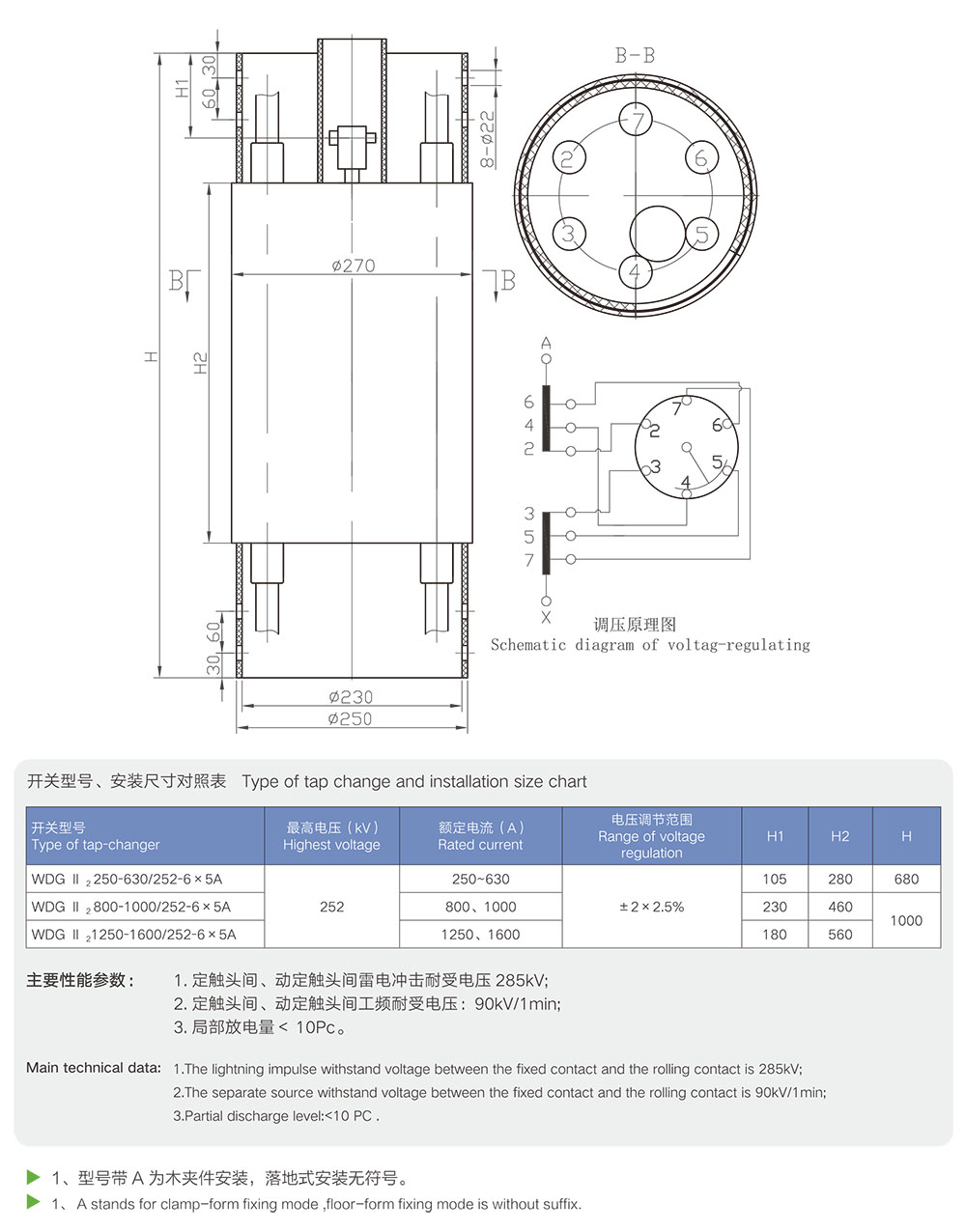

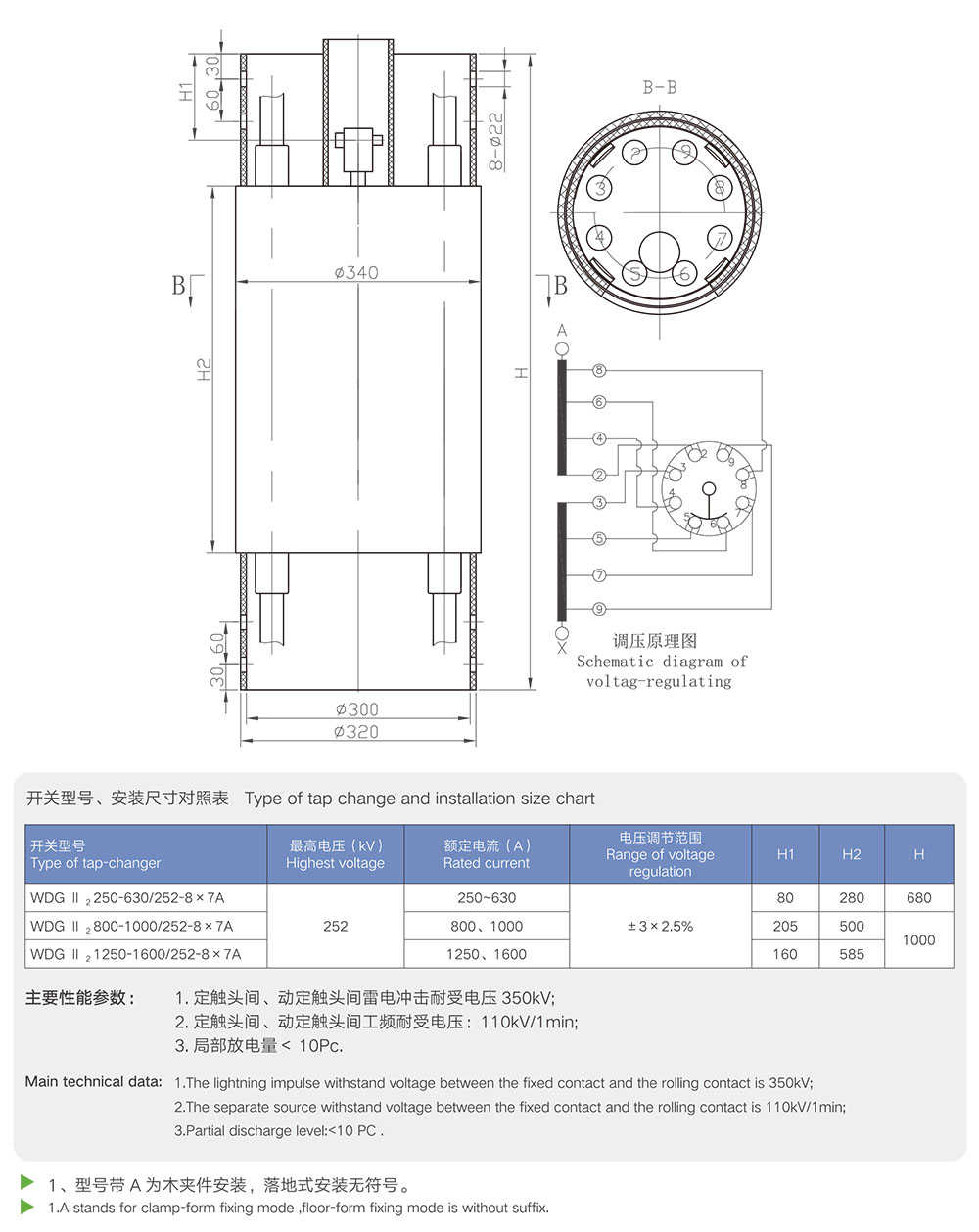

WDG ll? ( 252kV )單相鼓形分接開關( 250-1600A )
WDG ll? Series de-energized drum-formed tap-changer
WDG ll? ( 252kV )單相鼓形分接開關( 250-1600A )
WDG ll? Series de-energized drum-formed tap-changer

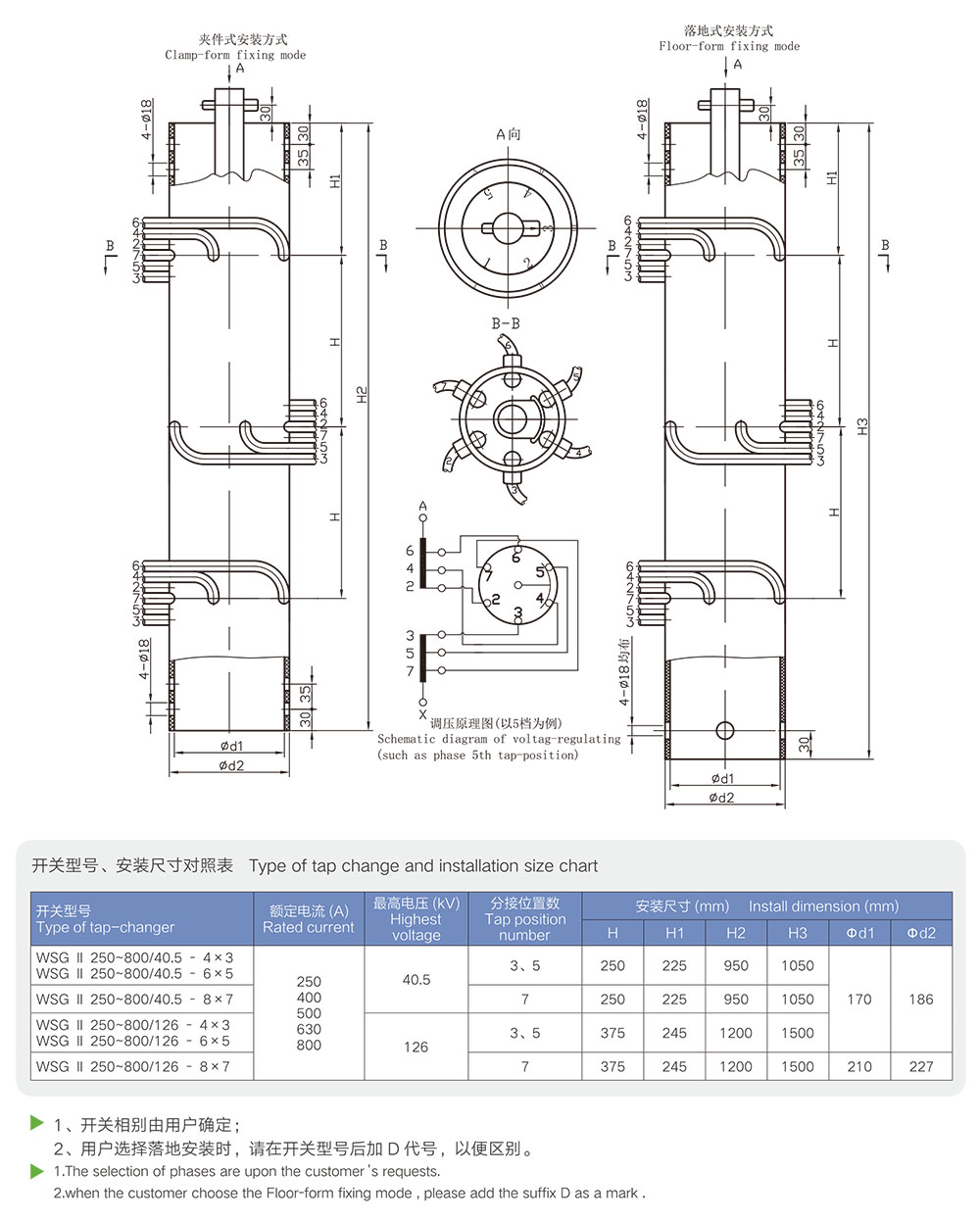

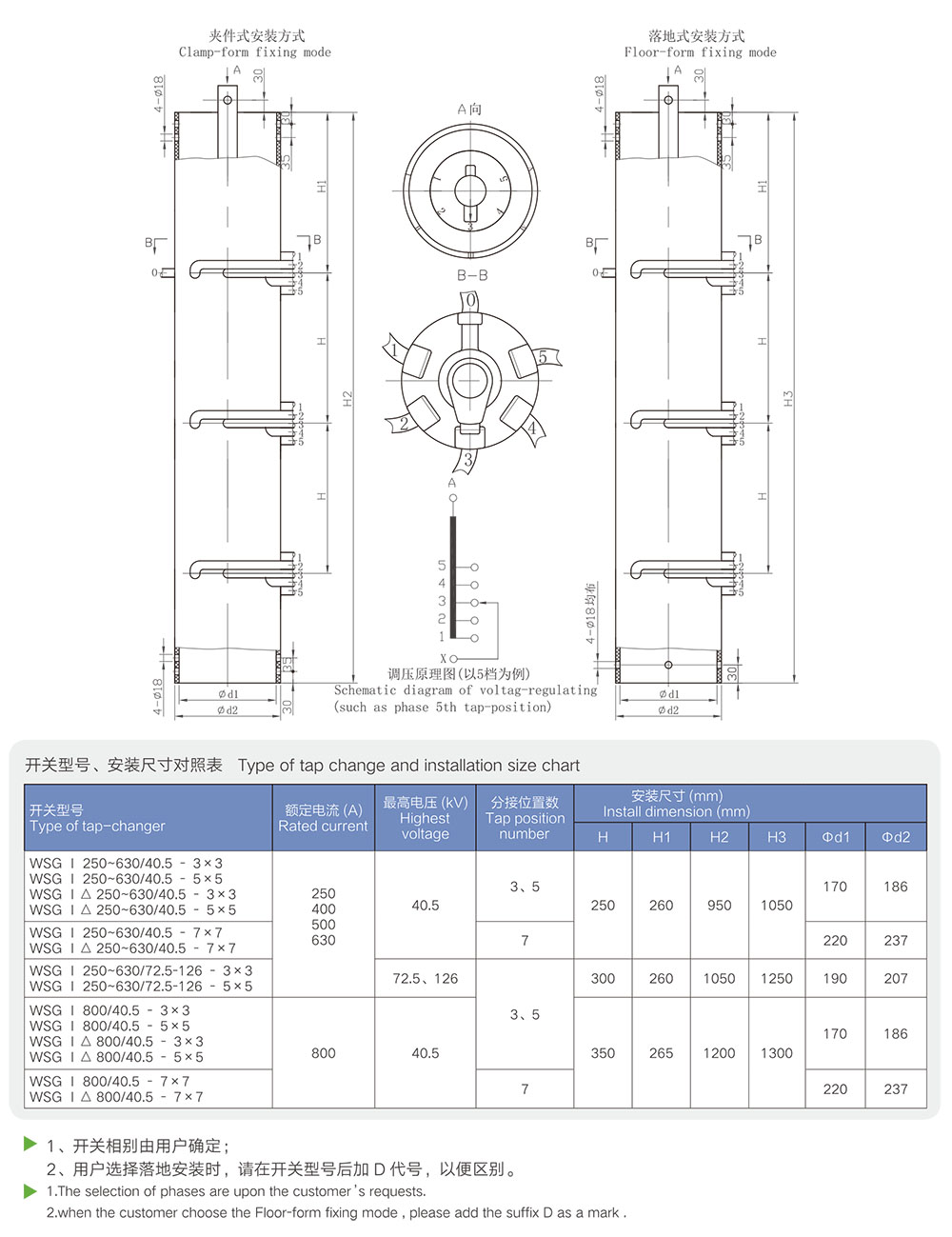

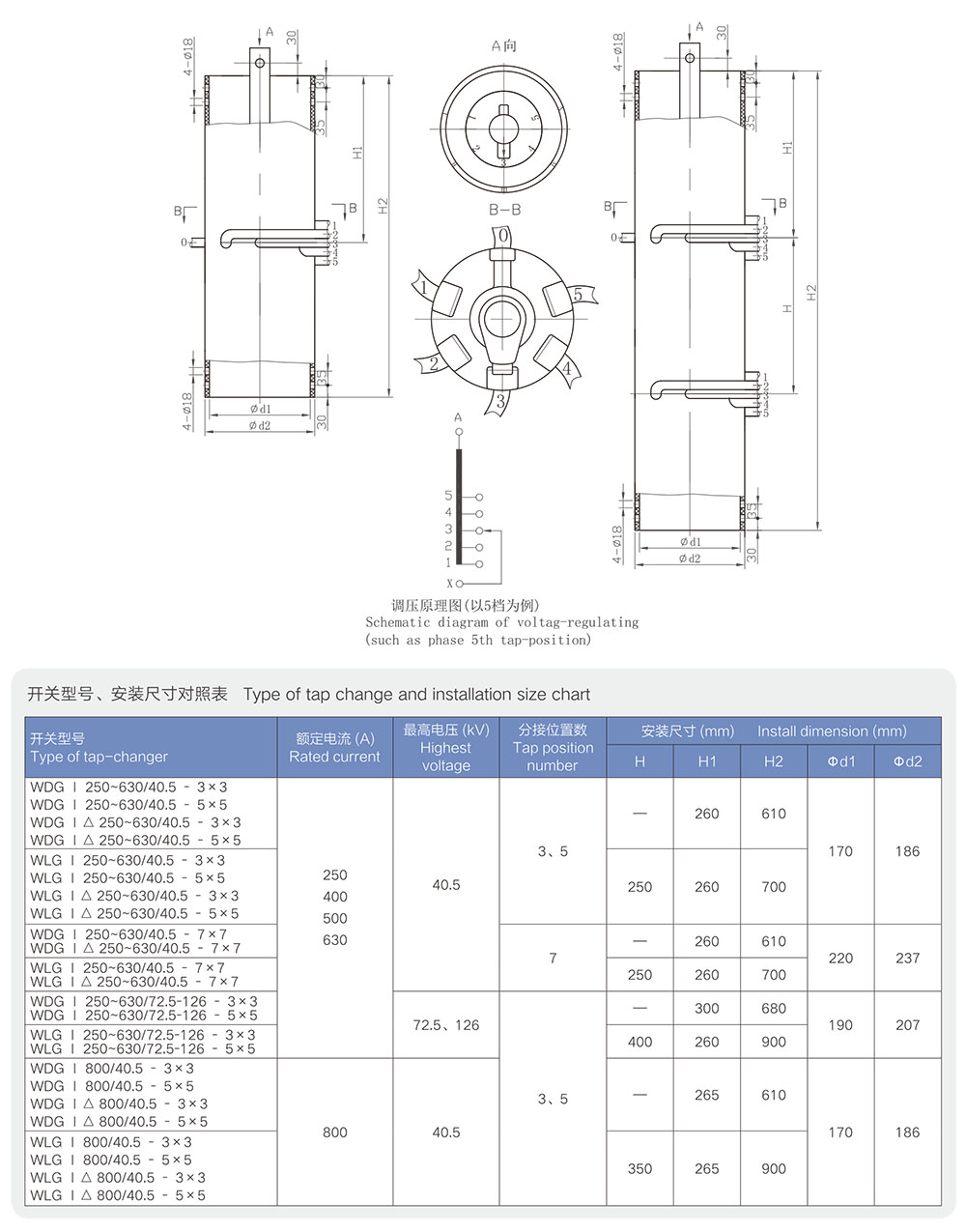

三相立式線性調( |、|△)管形(G)分接開關(250~ 800A)
Three-phases linear voltage-regulating( |、1△ )pipe-form (g) vertical tap-changer

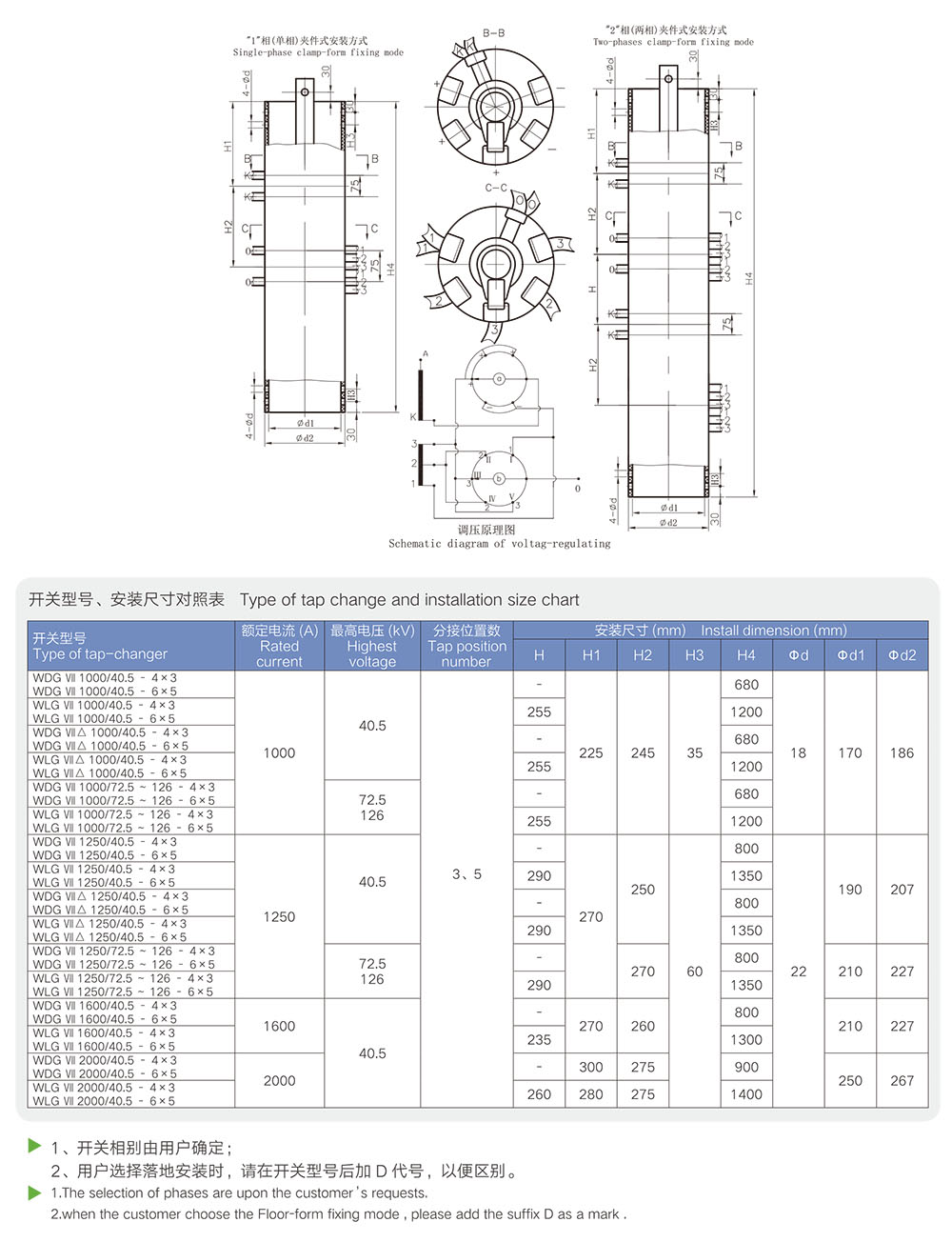

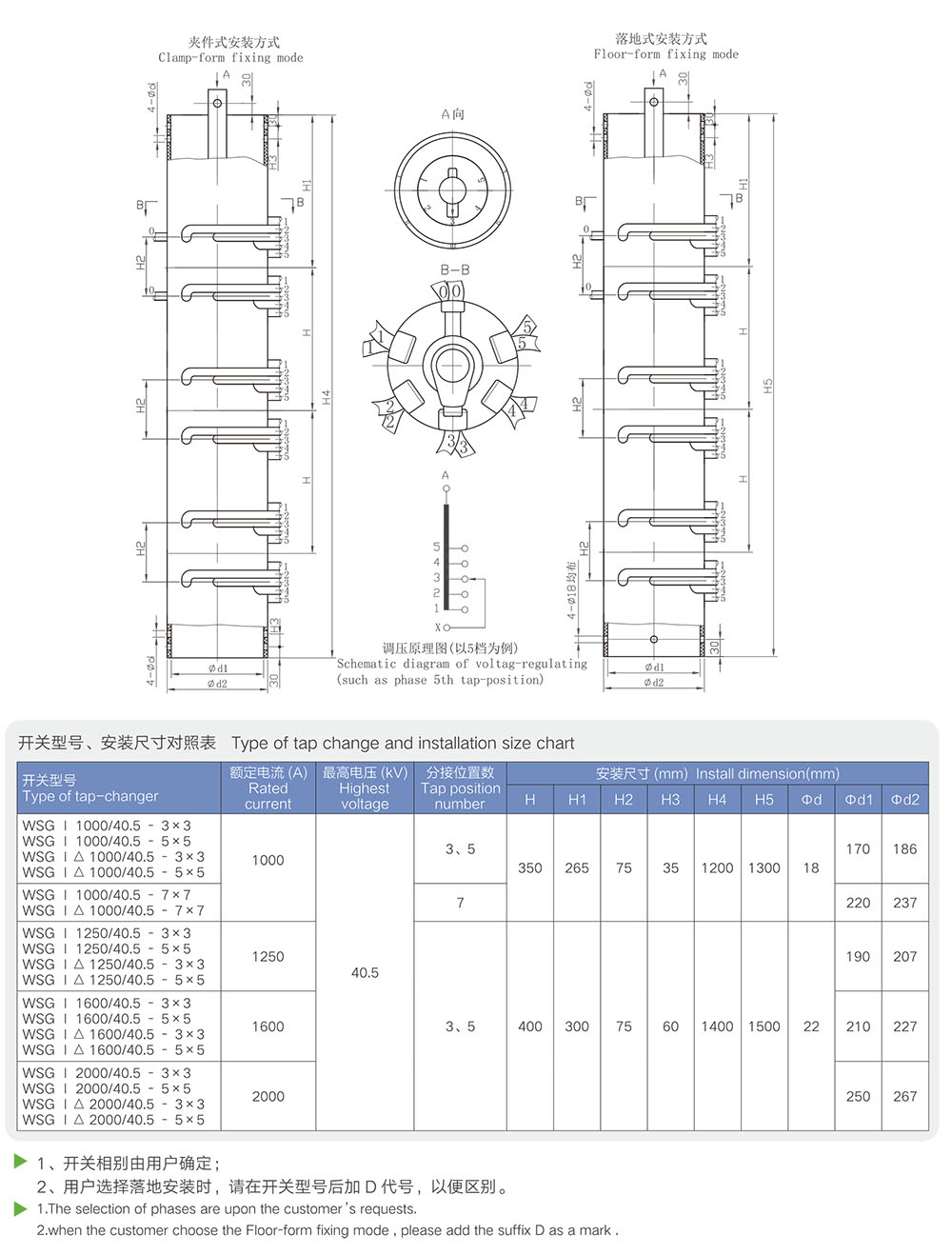

三相立式線性調( |、|△)管形(G)分接開關(1000~ 2000A)
Three-phases linear voltage- -regulating( |、|△)pipe-form (g) vertical tap-changer

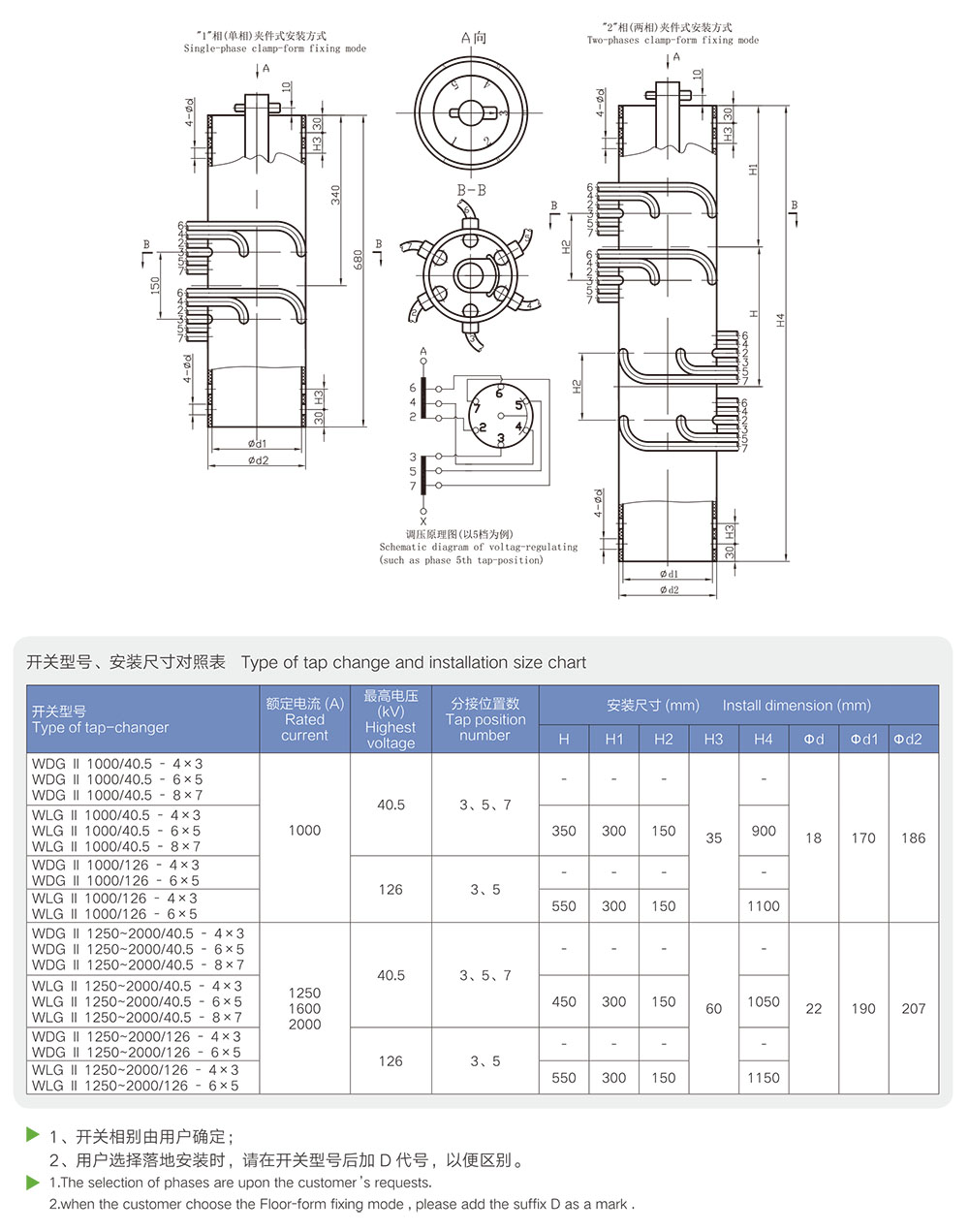

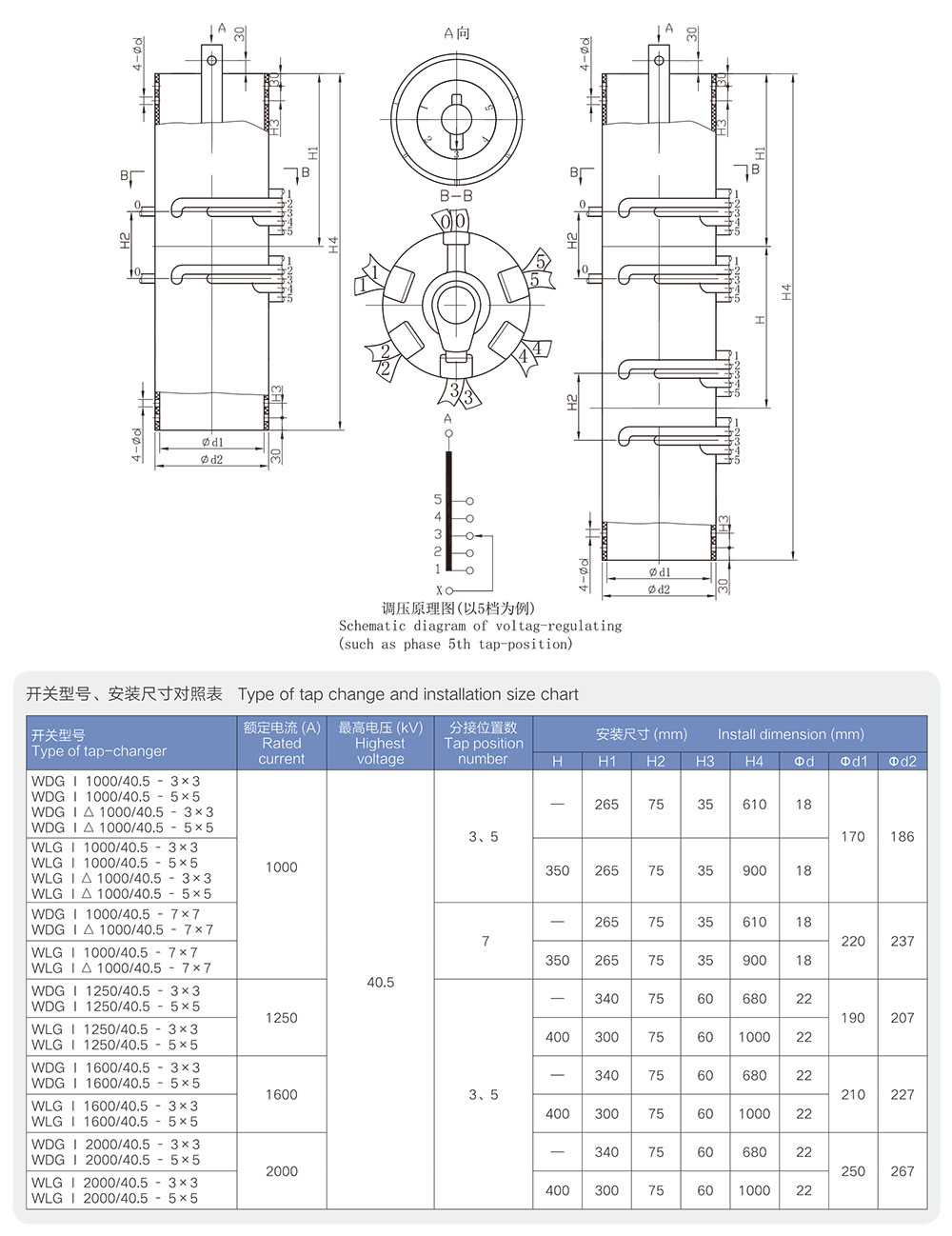

1+2相立式線性調( |、| △)管形(G)分接開關(250~ 800A)
“1+2”phases linear voltage-regulating( |、| △)pipe-form (G) vertical tap-changer
1+2相立式線性調( |、|△)管形(G)分接開關(1000~2000A)
“1+2”Phases linear voltage-regulating( |、|△)pipe-form (g) vertical tap-changer
三相立式單橋跨接( II )管形(G)分接開關(250 ~ 800A)
Three-phases linkage single-bridge crossing connection( II )pipe-form (g) vertical tap-changer

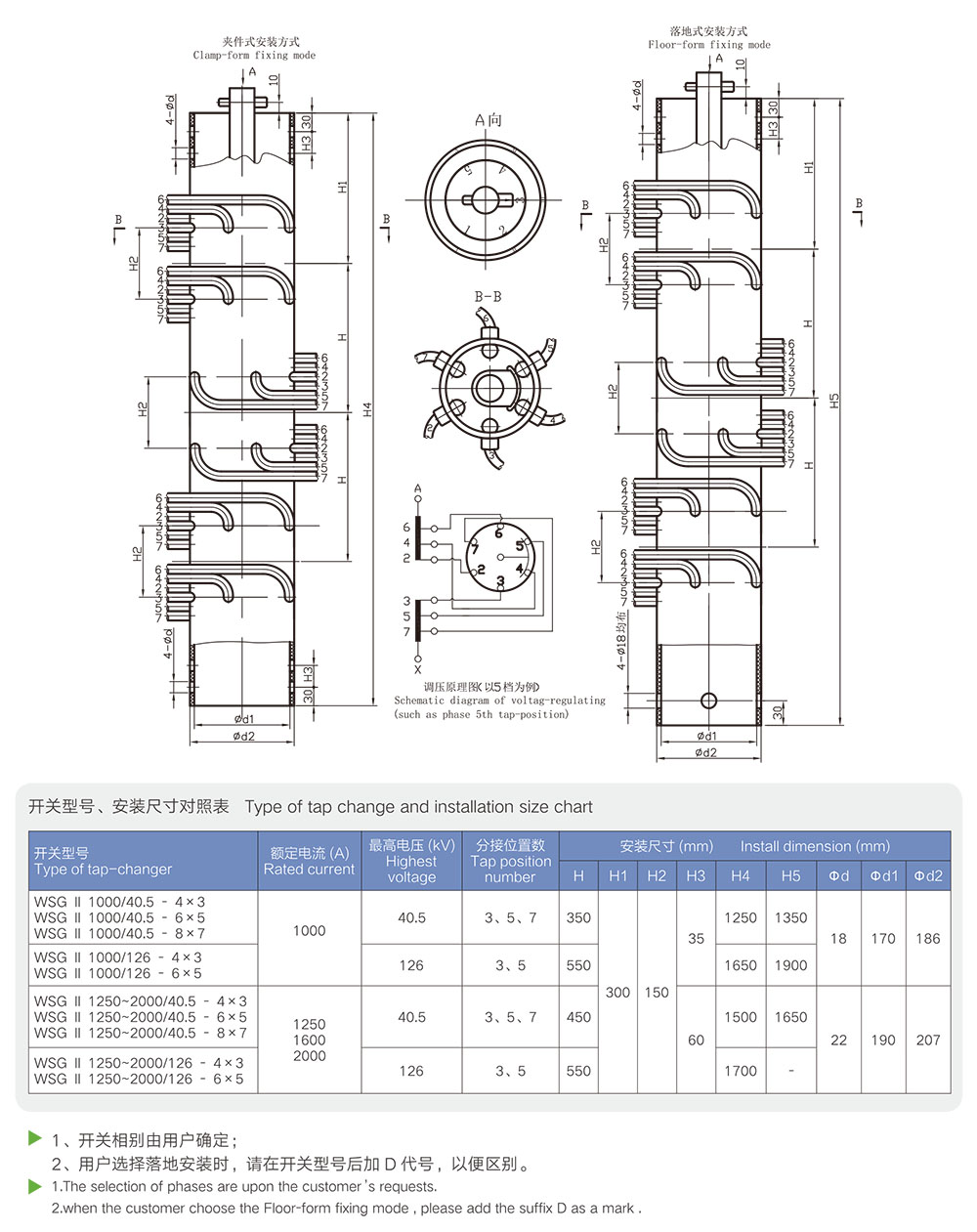

三相立式單橋跨接( II )管形(G)分接開關(1000 ~ 2000A)
Three-phases linkage single-bridge crossing connection( II )pipe-form (g) vertical tap-changer

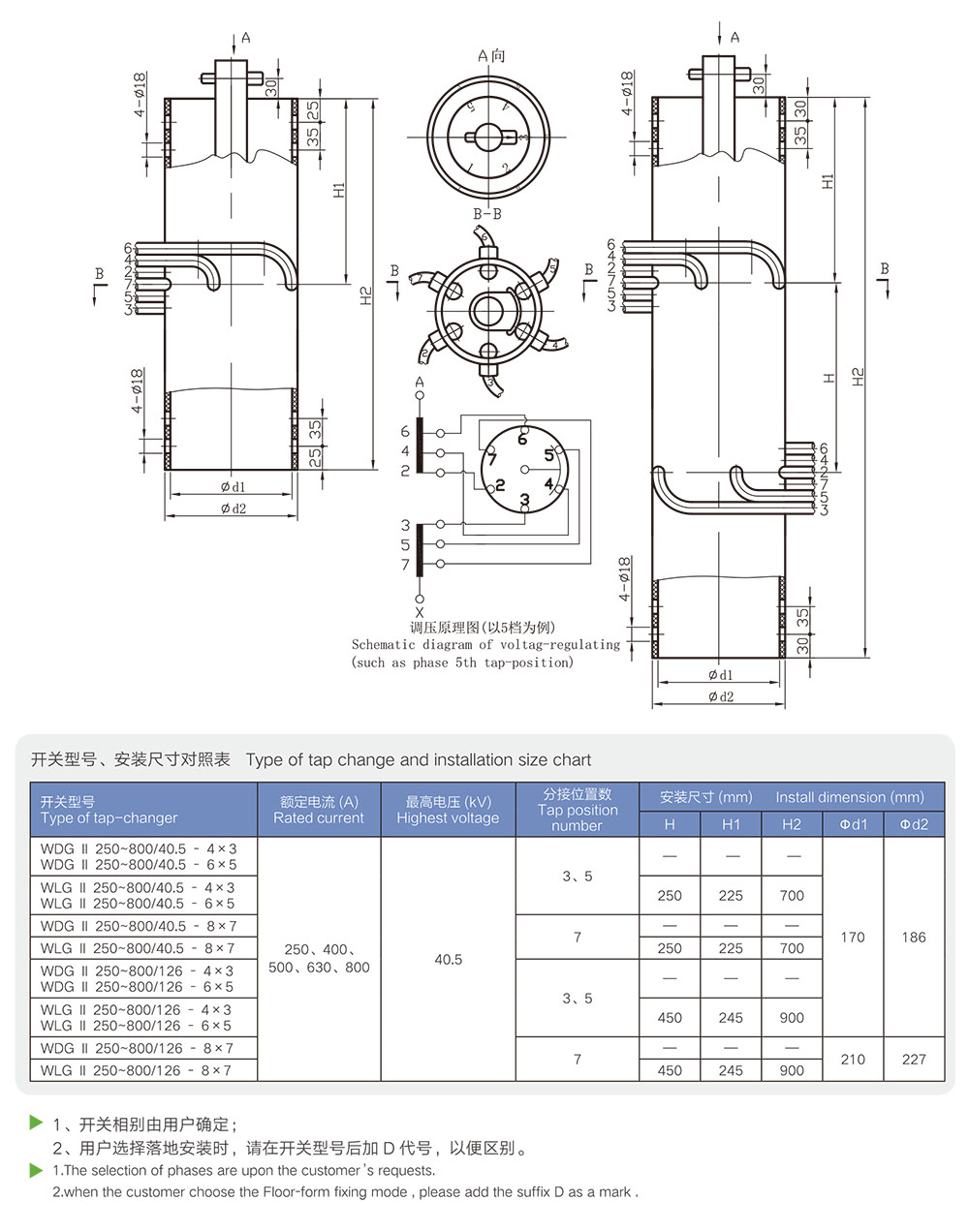

“1+2”相立式單橋跨接( II )管形(G)分接開關(250 ~ 800A)
“1+2”phase linkage single-bridge crossing connection( II )pipe-form (g) vertical tap-changer
“1+2”相立式單橋跨接( II )管形(G)分接開關(1000 ~ 2000A)
“1+2”phase linkage single-bridge crossing connection( II )pipe-form (G) vertical tap-changer

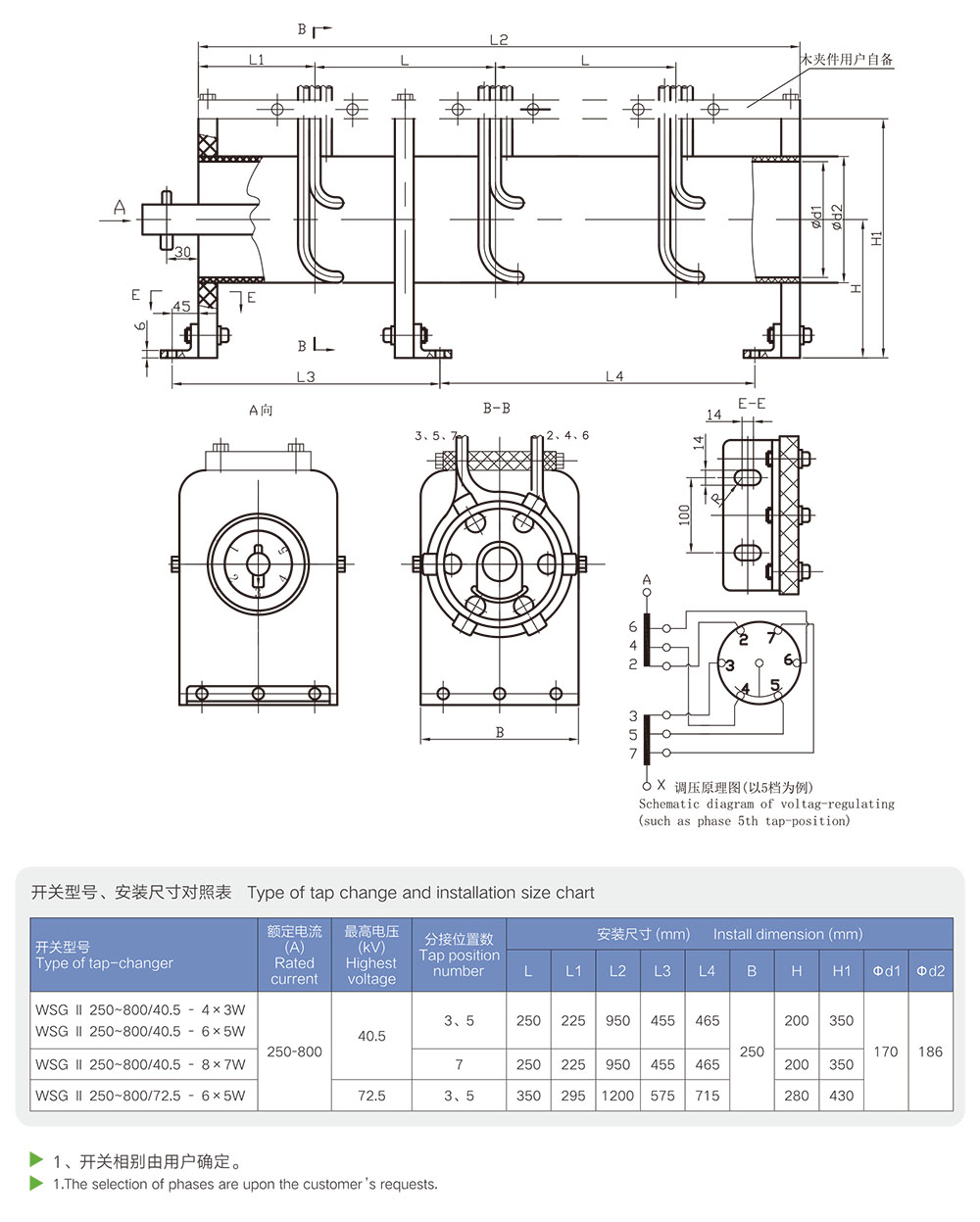

三相臥式(W)單橋跨接(II)管形(G)分接開關(250 ~ 800A)
Three-phases linkage single-bridge crossing connection( II ) pipe-form (G) horizontal tap-changer

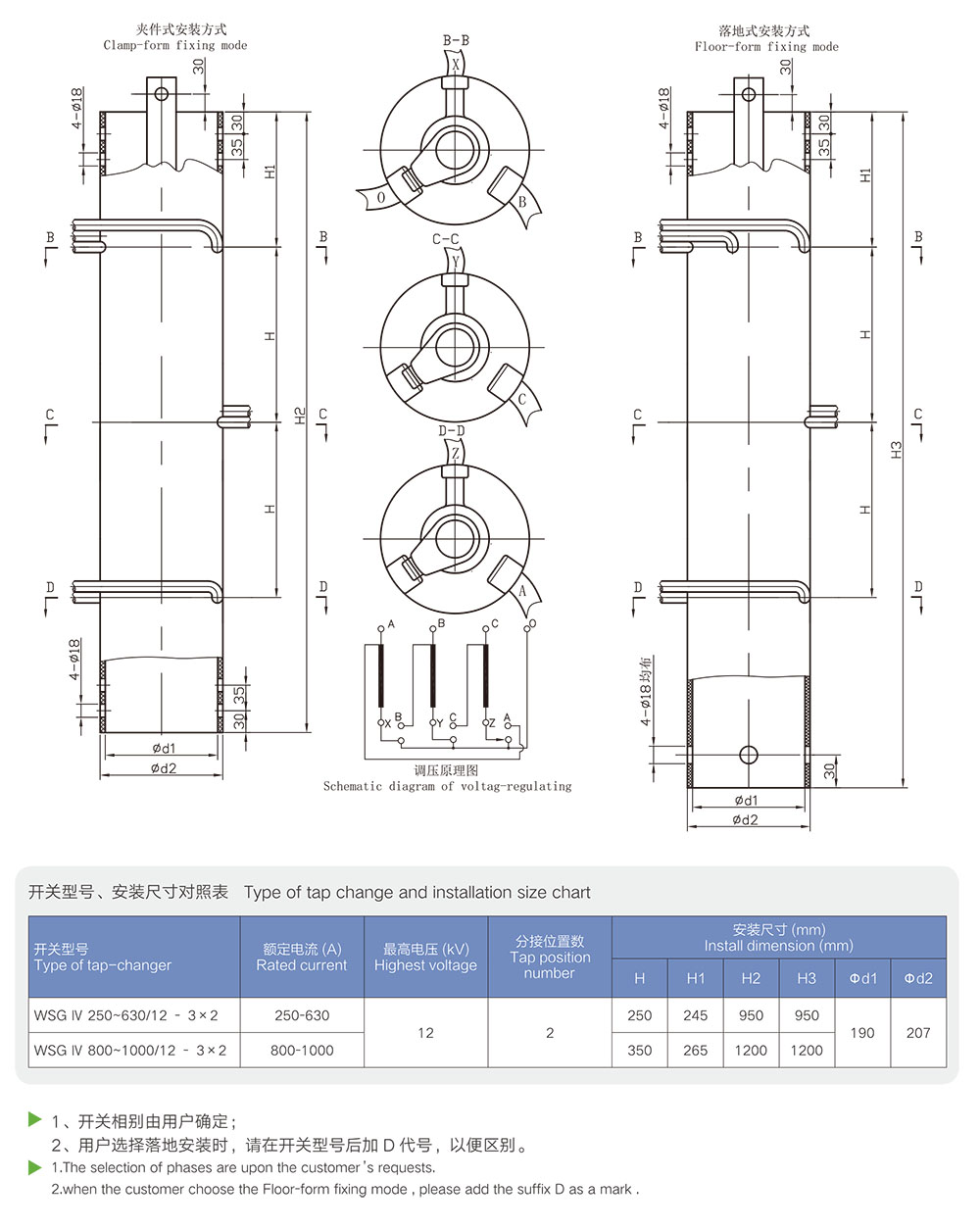

三相立式Y -△轉換(IV)管形(G)分接開關(250 ~ 1000A)
Three-phases vertical y -△ exchanger ( IV ) pipe (g) tap-changer

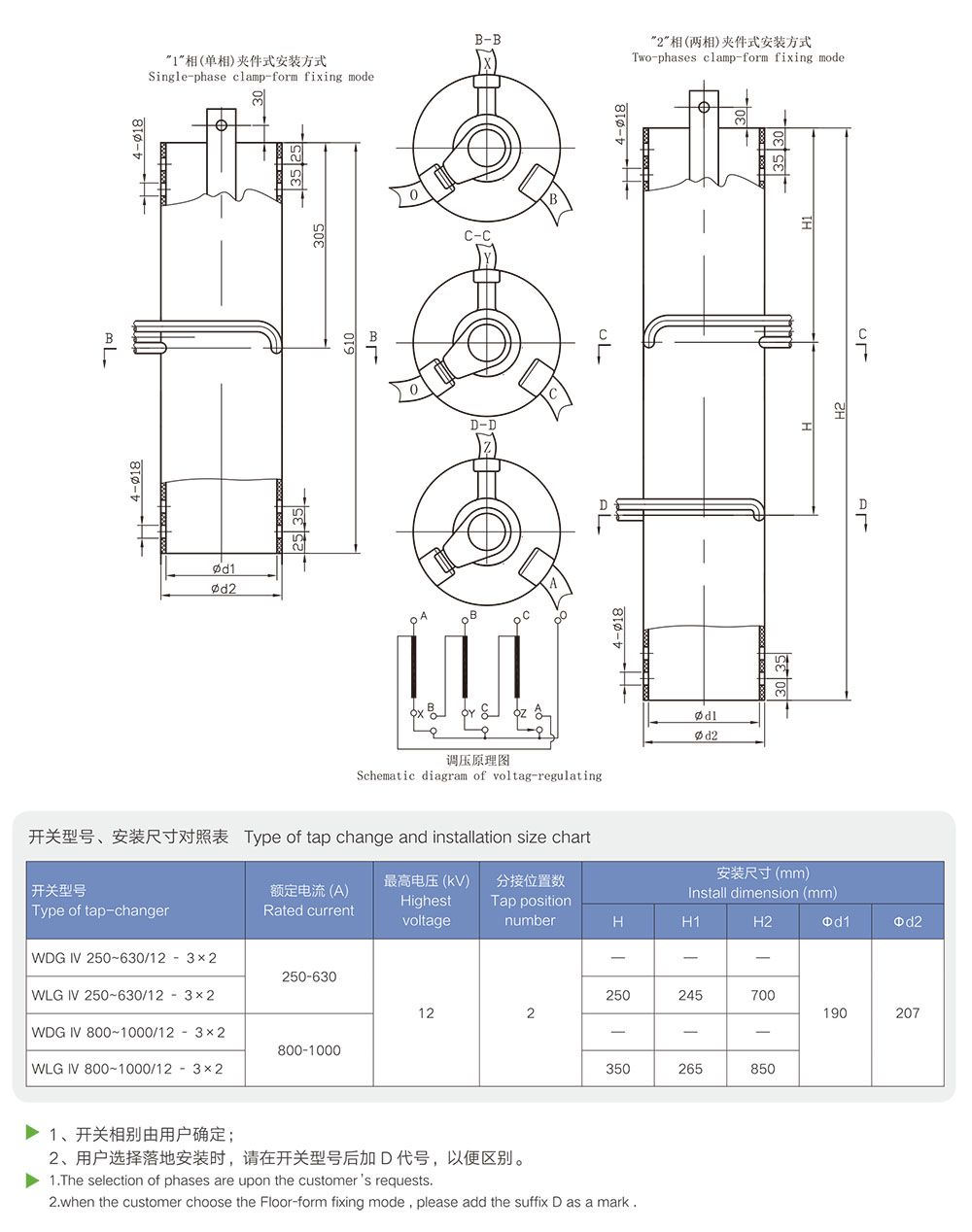

“1+2”相立式Y -△轉換(IV)管形(G)分接開關(250 ~ 800A)
“1+2”Phases vertical y -△ exchanger ( IV ) pipe (g) tap-changer

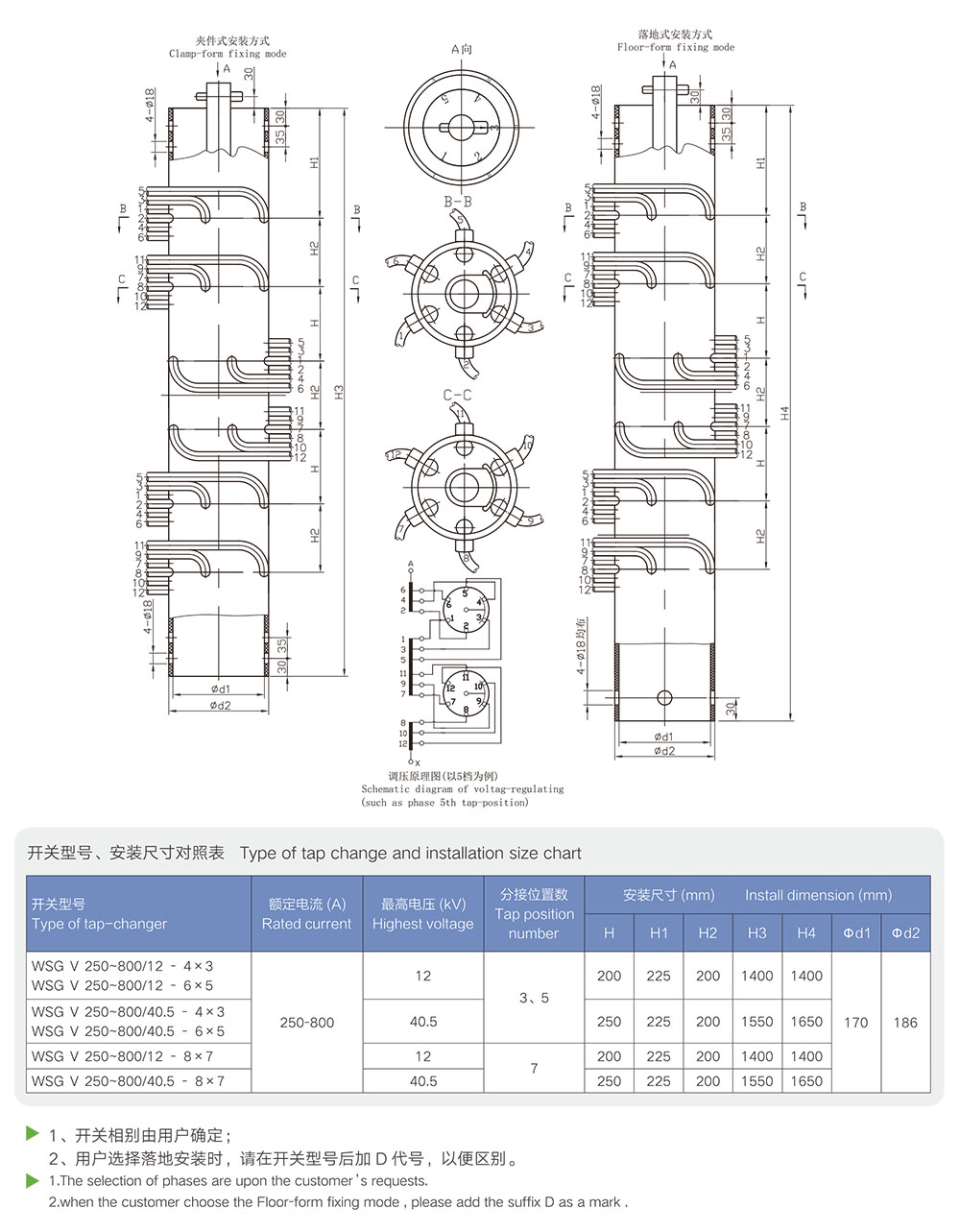

三相立式雙橋跨接( V )管形(G)分接開關(250 ~ 800A)
Three-phases double-bridge crossing connection( V )pipe-form vertical tap-changer

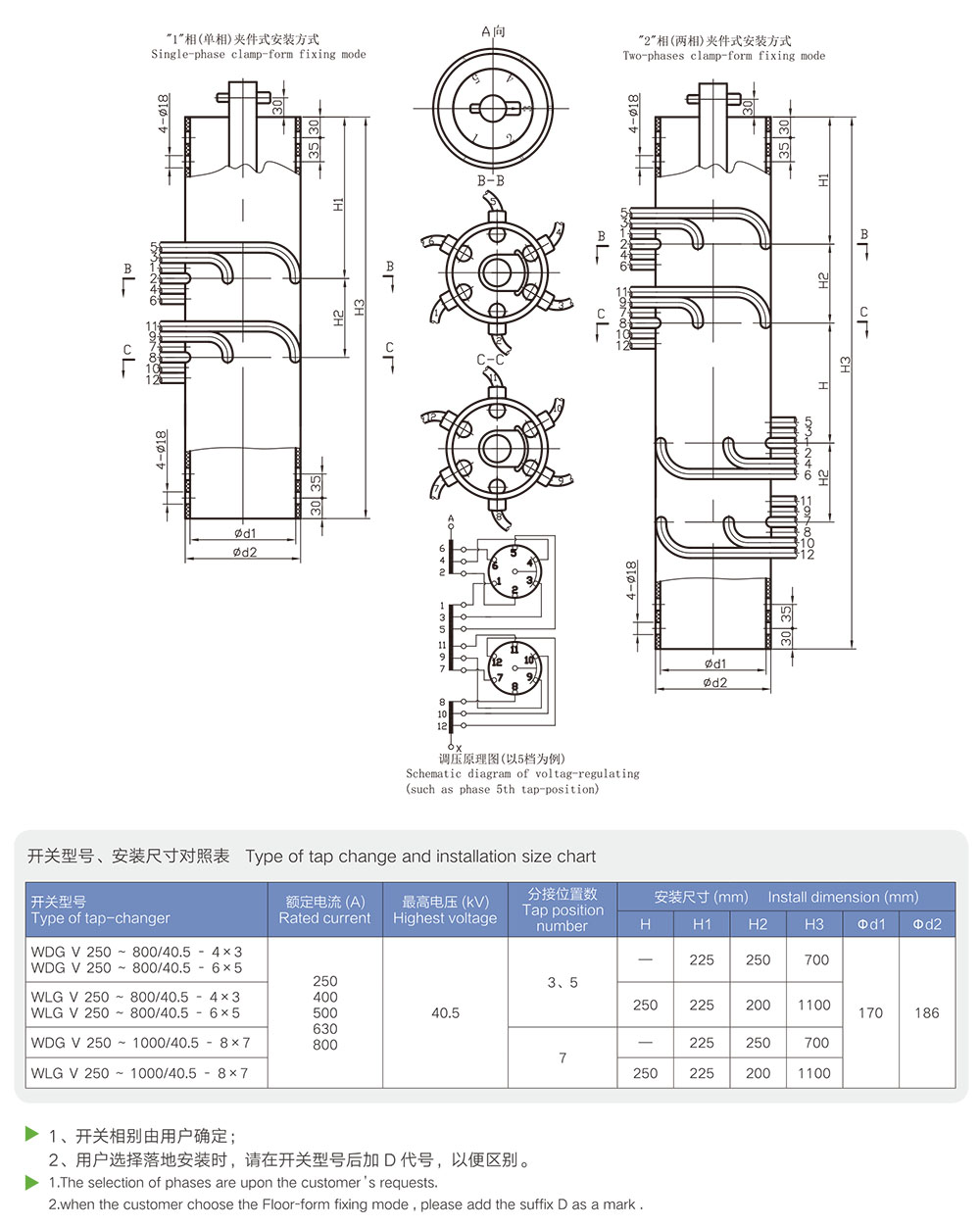

“1+2”相立式雙橋跨接( V )管形(G)分接開關(250 ~ 800A)
“1+2”phase double-bridge crossing connection( V )pipe - form(G) vertical tap-changer

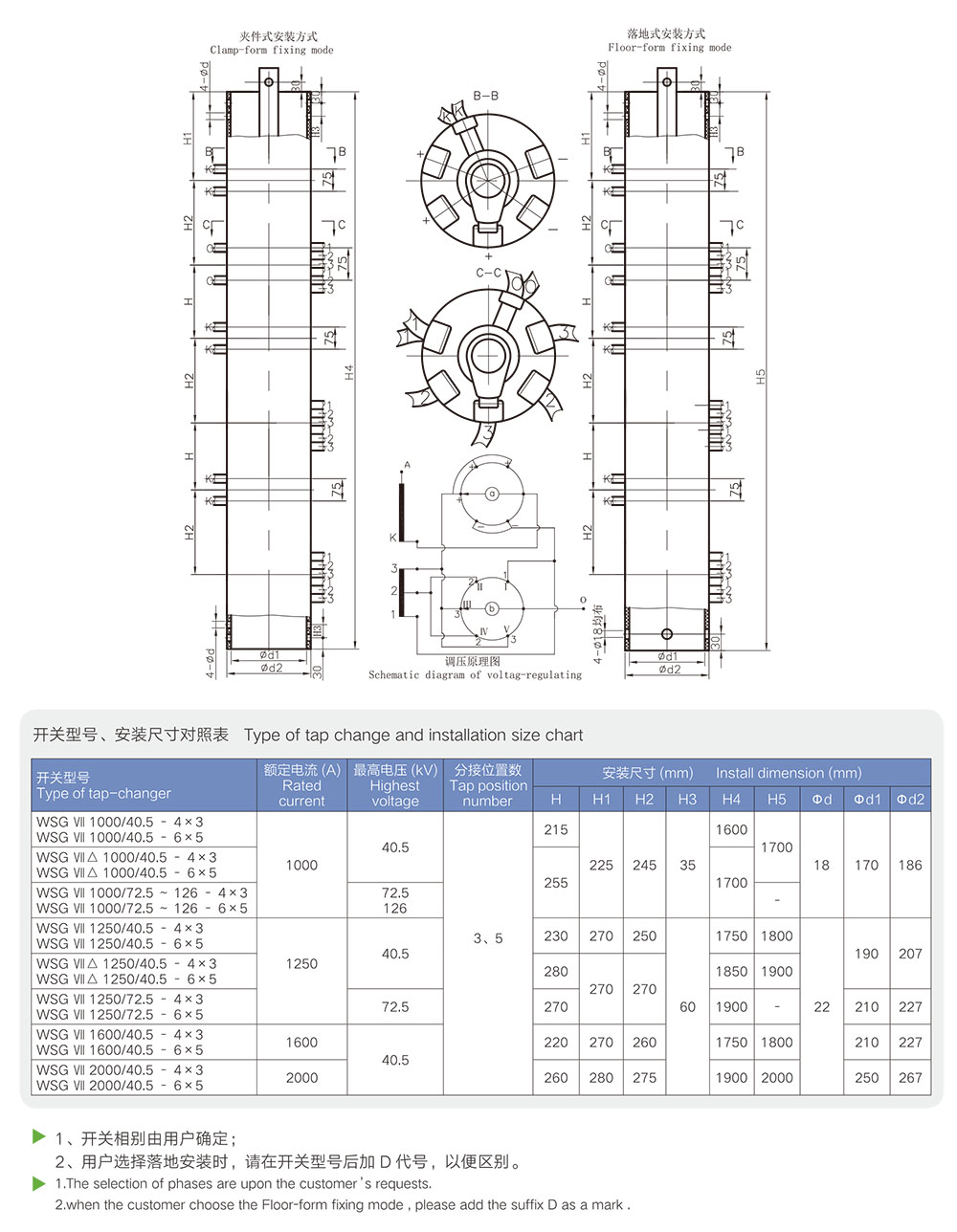

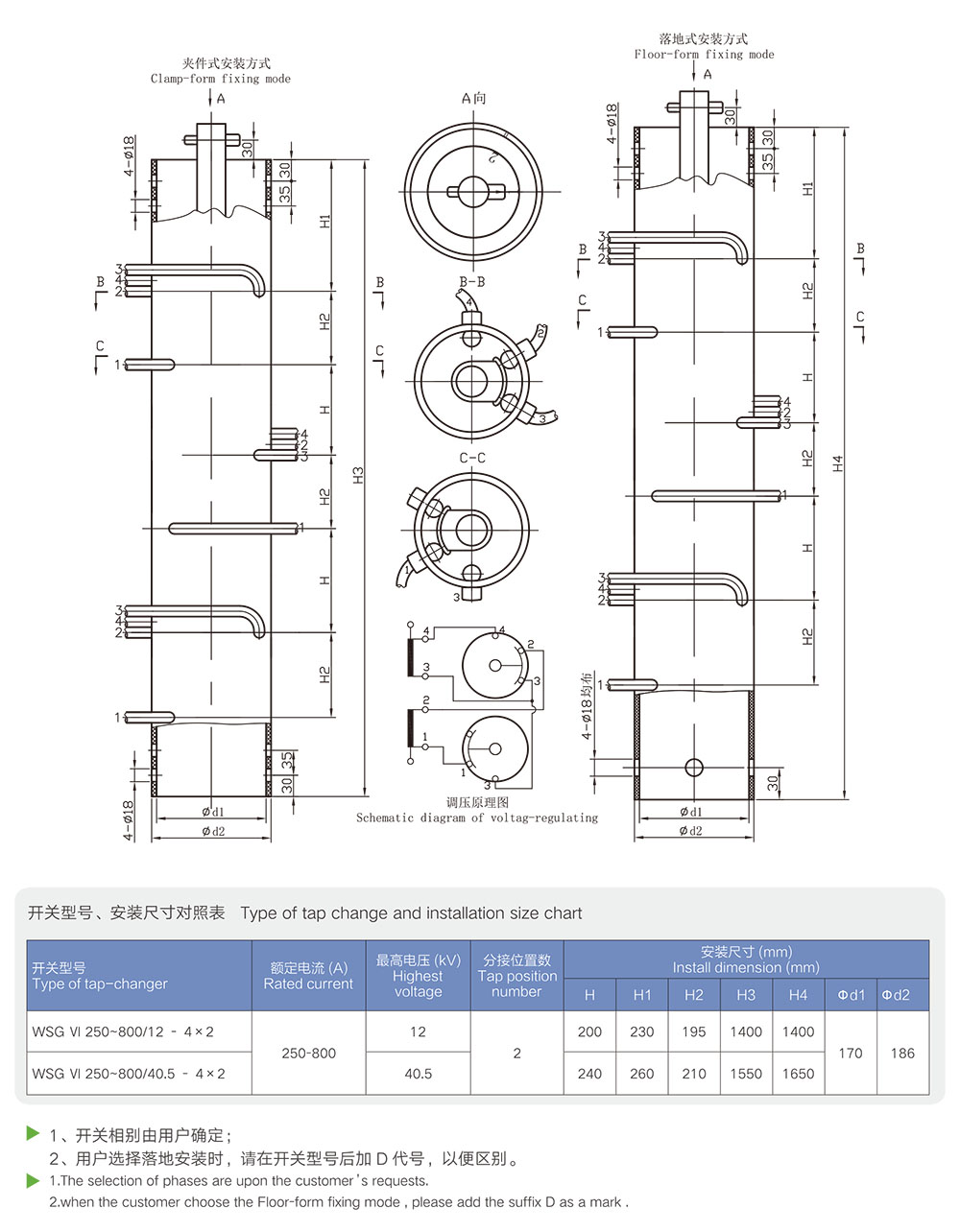

三相立式串-并聯( VI)管形(G)分接開關(250 ~ 800A)
Three-phases series - parallel exchanger ( VI) pipe -form (G) vertical tap-changer
“1+2”相立式串-并聯(VI)管形(G)分接開關(250 ~ 800A)
“1+2”Phase series -parallel exchanger (VI) pipe-form (g) vertical tap-changer

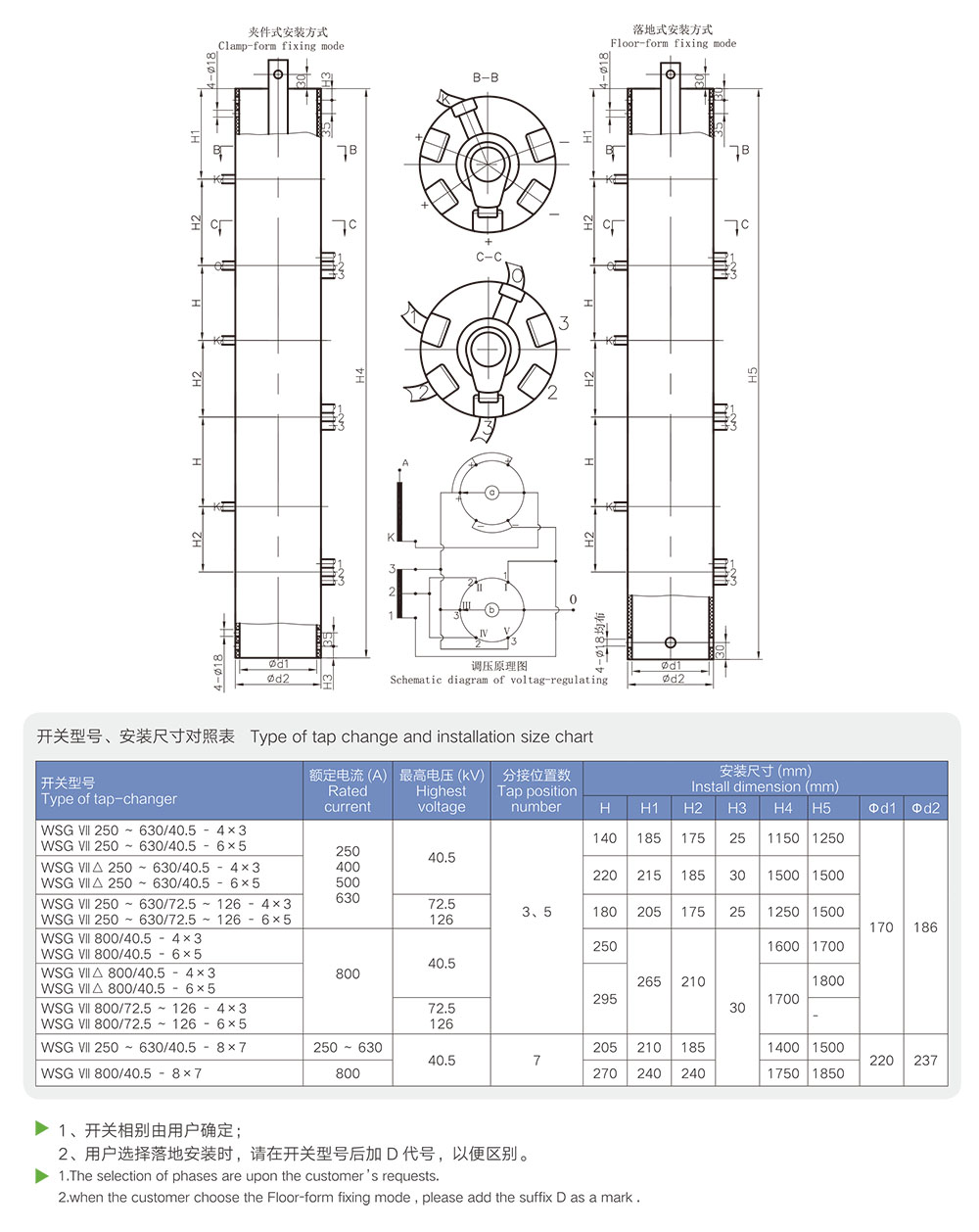

三相立式正反調(VII、VII△ )管形(G)分接開關(250 ~ 800A)
Three-phases positive-negative voltage-regulating (VII、VII△ ) pipe-form (g) vertical tap-changer
三相立式正反調(VI)管形(G)分接開關(1000 ~ 2000A)
Three-phases positive-negative voltage-regulating ( VIIl ) pipe-form (G) verical tap-changer
“1+2”相立式正反調(VI)管形(G)分接開關(250 ~ 800A)
“1+2”phase positive- negative voltage- regulating (VI) pipe-form (g) vertical tap-changer
“1+2”相立式正反調(VI)管形(G)分接開關(1000 ~ 2000A)
“1+2”phase positive- negative voltage - regulating (VI) pipe-form (G) verical tap-changer
